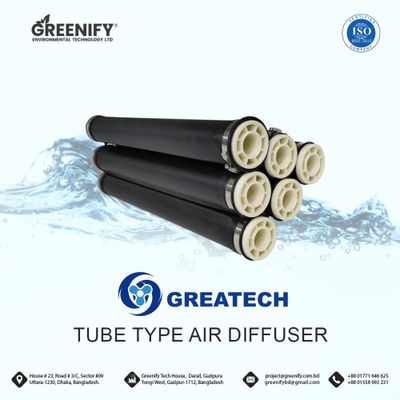

Tube Type Fine Bubble Air Diffuser
Model: GTD-D500*65
Type: Tube
Size: 500mm
MOC: EPDM
Connector: ¾” NPT Male Threat
Bubble Size: 1-2 mm
Design Flow: 1.7-6.8 m3/Hr
Flow Range: 2-14 m3/Hr
SOTE: =40% (06 m Submerged)
SOTR: =0.90 Kg O2/h
SAE: =8.6 Kg O2/Kw.h
Headloss: 2200-4800 Pa
Service Area: 0.75-2.5 m2/Pcs
Service Life: Minimum 05 Year
Brand: GREATECH/Taiwan.
Coarse bubble air diffusers are widely used due to their combination of high oxygen transfer efficiency and low energy requirements, making them a preferred choice for wastewater treatment plants.
