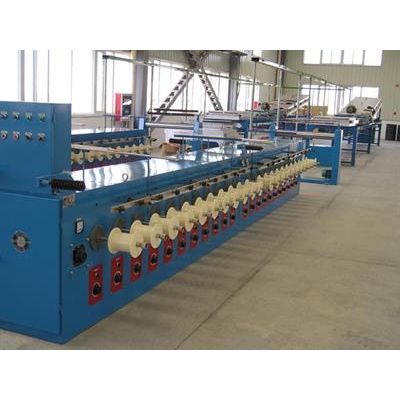

Tube Type Annealing and Tin Coating Machine
Application: annealing and tinning for bare copper wire. Input wire size：φ0.10~φ0.52mm. Lines of input wire：40. Wire speed：MAX.300M/MIN. This produce line including: annealing machine, tractor, tinning machine, and coiler，four single machines connected in series. Annealing machine including: 5.5M annealer, water tank, dryer and jump type pay off. Tractor: the traction wheel is controlled by frequency speed control device, which can get any speed. And the traction barrel is plated by hard chromium.
Most popular related searches
- Tinning furnace: tinning adopts horizontal hot dip, and the dies are used in the tinning. The capacity of the tinning furnace is about 400KG.
- Take up machine: uses double speed specially-made torque motor, horizontally made, easy to load and unload the bobbin.
- No. of take up bobbin: 44（4 bobbins for spare）, with 44 pieces of 1A booster adjusting take up tension independently.
- Take up axes: P5~25 plastic made axes (φ75~φ250) . Take up capacity 2~25KG.
- Transverse: adopts DISCO stepless speed regulation. The transverse throw and pitch can be adjusted.
- Heat preservation control device: annealer, dryer and the tinning furnace adopt automatic heat preservation control devices, ensuring temperature equalization and saving electricity. The annealing adopts three stage temperature control, enabling annealing equalization.
