Membracon - Model ISOFLUX -Tubular Ceramic Membrane
Tubular ceramic membranes entirely made for food processing & bio-industries. The ISOFLUX membrane improves performances of existing separations and allows separations which were difficult or impossible to make before.

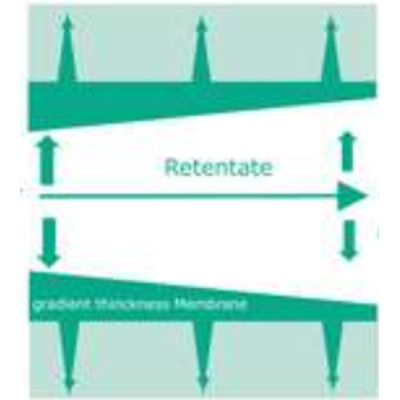

The ISOFLUX™ membrane allows obtaining a constant permeate flux on each point of the membrane without using a complex and expensive system. To obtain this result the thickness of the separating layer decreases from the inlet to the outlet in order that the ratio pressure/thickness of the layers stays constant.
In opposition to classical membranes for which the permeate flux decreases from the inlet to the outlet, the ISOFLUX™ membrane allows obtaining a permeate flux independent on the position where it is measured.
-
Food processing:
- Milk bacteria removal
- Whey bacteria removal
- Milk casein / whey protein separation
- Fat / protein separation from whey
- Syrup bacteria removal
Bio-industry:
- Enzyme / protein extraction from the fermentation broth
- Bacteria / active principal separation
- High performances
- Simple use (classic filtration loop)
- Flexible use (important latitude in terms of work, pressure, standard cleaning)
- Reduced risk of fouling because
- All the channels work in identicaly way
- The membrane layer remains fine despite its tichkness gradient
- The support of membrane is standard
- Geometrical configuration compatible with other existing industrial units.
