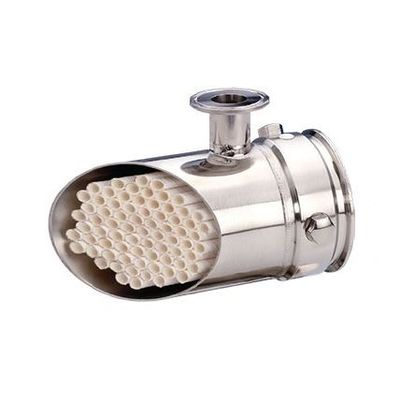

PCI - Model A5 Series -Tubular Membrane Modules

The module uses our specially developed PVDF Ultrafiltration membranes that are suited to a variety of different process conditions. Three different separations are available: 20k Daltons, 100k Daltons and 200k Daltons nominal cut-off, although actual performance depends also on the operating conditions.

The compact design gives the module a high strength, allowing operating pressures of 10 bar at temperatures up to 60°C.

The module is available as standard in either 1.83m, 3.05m or 3.66m lengths, providing membrane areas of 2.34m², 3.97m² or 4.76m² respectively.
