Paul Groth - Tubular Screw Conveyors for Bulk Material Conveying

SHARE
PAUL GROTH tubular screw conveyors are designed for the efficient horizontal or ascending mechanical conveyance of floury, granular, and lumpy bulk materials. These systems can adapt to various tasks, including dosing, wetting, mixing, and grinding, depending on their configuration. Utilizing a standard modular system, they are tailored to meet specific product properties, installation options, and processing needs. The conveyors are constructed with robust materials like steel and stainless steel, offering models with variable jacket and thread diameters to accommodate diverse material characteristics. Advanced features such as progressive thread pitch, various sealing options for sanitary and industrial applications, and ATEX zone 22 and 21 compliance ensure safety and versatility. Suitable inlets and outlets are designed for integration with Jacob pipework systems, and additional options like two-part intermediate bearings and hinged covers with safety switches further enhance their operation.
Most popular related searches
tubular screw conveyor
screw conveyor
pipework system
flexible coupling
bulk materials system
flexible screw conveyor
safety compliance

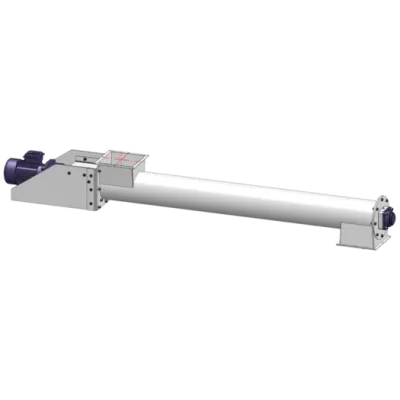

PAUL GROTH tubular screw conveyors for horizontal or ascending mechanical conveying of floury, granular and lumpy bulk materials.

With the appropriate design, tubular screw conveyors can also perform other tasks such as dosing, wetting, mixing and crushing.

Starting with our standard modular-system we adapt the tubular screw conveyor to the product properties, the installation option and other process requirements.


  • Motor bracket with geared motor and flexible coupling
  • Tubular screw conveyors made of steel: outside painted and inside untreated, or hot-dip galvanised
  • Tubular screw conveyors made of stainless steel: bath pickled and outside glass-bead blasted
  • Screw thread made of highly wear-resistant steel too
