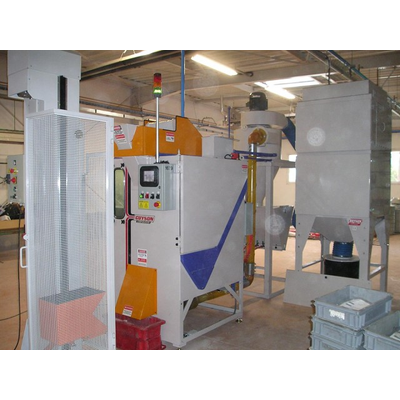

Guyson - Model T-86 -Tumble-Blast System
Fully automatic loading and unloading of components in the T-86 permits unmanned operation, with PLC-controlled blast and airwash cycles. The T-86 tumble-blast machine has a 44” x 60” machine footprint, and its tumble-basket holds up to 1 cubic foot of components weighing up to 150 pounds. Up to 4 suction-blast guns or 2 pressure-blast nozzles expose the gently turning components to blasting during the timed process cycle. An automatic airwash blow-off cycle removes media and dust from the parts as they continue to tumble.
The finished parts are automatically discharged through the chute at the bottom-front of the cabinet, and the upper in-feed hopper loads the next batch. Dead time between cycles is minimized in nearly continuous operation – in fact, the T-86 can out-produce tumble-blast machinery of much larger cubic capacity and dramatically reduce your manpower requirements.
