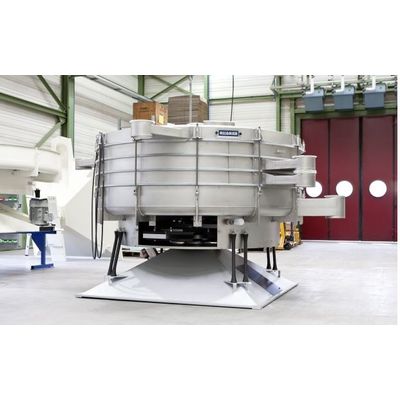

Allgaier - Model TSM/tsi -Tumbler Screening Machines
Allgaier tumbler screening machines TSM/tsi are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 7 particle sizes.
The Allgaier tumbler screening system features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options: Among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, air, brushes, ultrasound, and various combinations being of these options are available to prevent blinding and maintain efficient screening.
When adjusting the machine for the material being screened, an individually defined, three-dimensional eccentric motion pattern with a radial and tangential inclination is set.
While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.
- Screening process that goes gentle on the material being screened
- High grading accuracy of up to 99%
- Throughput of up to 40 t/h
- Up to 6 decks and 7 particle size ranges; screen surface area/deck: 0.28–6.40 m2
- Tumbling motion can be adjusted in a continuously variable manner with RATEX system
- Features internal seals, gas-tight up to 50 mPa
- 9 sizes with screen diameters ranging from 600 mm to 2,900 mm
- QTS (rectangular tumbler screening machines)
- WIP version
- Bouncing ball cleaning
- Brush cleaning
- Passing units
- Ultrasonic cleaning
- Air cleaning
- Quick clamps
- ATEX version
- Segmented screening inserts
- Special outlets
- Lifting devices
- Ultrasonic air cleaning
- Frame (mobile, stationary)
- Hinged cover
- Hygienic design
- Air brush cleaning
