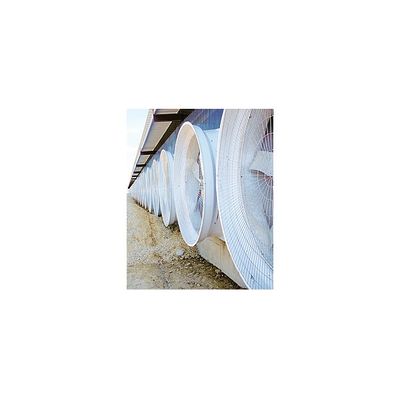

Secco Isocell - Model Megafan -Tunnel Ventilation
High performance and innovative design: Thick and corrosion resistant fiberglass housings with lifetime warranty (The 78’’ (1.98m) model is grey). Totally enclosed, maintenance free, high efficiency and U-CSA-C or. CE approved motors. Shipped fully assembled except for discharge cones and guards. Extremely quiet operation on all speeds. Automatic belt tensioner on all belt drive fans. 3 years warranty on the motor and on the blades. Full one year warranty on all other parts.
Most popular related searches
variable frequency drive
exhaust fan
tunnel ventilation
exhaust ventilation system
tunnelling
exhauster system
exhaust ventilation
- Balanced heavy duty corrosion resistant 6 aluminium blade propeller
- Propeller with 5 black blades reinforced with polyamide fiberglass for the 78’’ model
- On high speed produces 54 960 CFM (93 432 M3/H) and 19.6 CFM/watt (33.4 M3/H) at 0” static pressure
- On low speed produces 10 000 CFM (16 990 M3/H) and 30 CFM/watt (50 M3/H) at 0” static
- Optional variable frequency drive allows you a smooth speed adjustment from 355 RPM down to 80 RPM. Fan power consumption reduces with speed. Make sure you have a minimum shutter opening on low speed of 1’’ (2.54 cm)
- All fan performances have been independently tested
- Motor is 3 HP or 2.2 KW on high and 0.3 KW on low 230/460, 3 phase VAC
- All motors are U-CSA-C or CE approved and are 50/60 hz
