GEI Works - Model Type 3 -Turbidity Curtain for Sediment Control
The Type 3 Turbidity Curtain from GEI Works is designed to provide robust sediment control in fast-moving waters and challenging conditions. This heavy duty silt barrier is crafted to meet or exceed both state DOT and federal sediment control requirements for environments such as rivers, bays, harbors, and tidal zones where water can reach speeds up to 3+ knots. Featuring options for both permeable and impermeable materials, the curtain is equipped with 8-inch or 12-inch floats and top tension cables to maintain stability even in adverse weather conditions. ASTM universal slide connector options and corner plates add to the customization capabilities. The product is available in 18 oz and 22 oz material weights, with ballast chains ranging from 5/16 inch to 3/8 inch, ensuring diverse applications from coastal construction to pile driving. The Type 3 Turbidity Curtain effectively encapsulates sediment-laden water, facilitating sediment settlement and maintaining water quality.

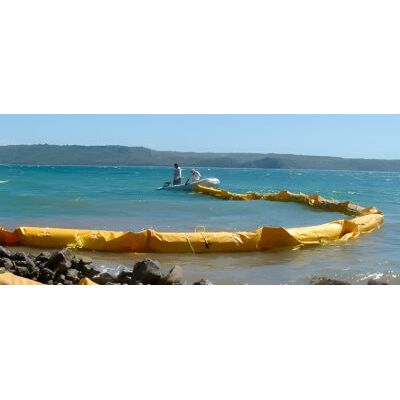

Type 3 Turbidity Barriers are our strongest turbidity curtain, designed for fast moving waters and demanding conditions. Built to provide turbidity protection in strong water, waves, and wind, our heavy duty silt curtains bring sediment control and increased strength to any containment or control area. Our Type 3 Sediment Barrier is designed to meet or exceed state DOT and federal requirements for sediment control in moving waters. These heavy duty silt curtains are vital for specific jobsite specifications and have a variety of customization options. When installed as directed, Type 3 Turbidity Curtains provide sediment control and protection from turbidity caused by construction. The Type 3 curtains create a secure containment area for the sediment-laden water, forcing the sediment to settle back to the watershed’s floor. Designed for rivers, bays, harbors, and tidal zones up to 3+ knots.
- Designed for fast water, waves, or demanding conditions
- Dredging Sites
- Remediation Projects
- Long-Term Projects
- Shoreline Restoration
- DOT Road & Bridge Repair
- Pipeline Construction
- Projects in Bays and Harbors
- Coastal or Marine Construction
- Pile Driving
- Areas Severely Affected by Wind or Wav
- Float Size: 8″ Square Floats
- Material: 18 oz. Impermeable PVC w/ permeable monofilament filter fabric
- Top Cable: 5/16” Galvanized Steel Cable Sheathed in Vinyl
- Ballast: 5/16” Galvanized Steel Chain
- Reinforced Grommet Section Connectors
- Hardware: Top Stress Plates with Grommets, Corner Plates
- Anchor Point: Every 50’ to 100’
- Float Size: 12″
- Material: 22 oz. PVC Impermeable Material
- Top Cable: Dual 5/16″ galvanized steel cable (above & below float)
- Ballast: 3/8″ Galvanized Steel Ballast Chain
- Connectors: ASTM Universal Slide Connectors
- Hardware: Stress Plates, Grommets, Corner Plates
- Anchor Point: Every 50’ to 100’
- Float Size: 12″
- Material: 22 oz. PVC w/ Monofilament Fabric
- Top Cable: 5/16” Galvanized Steel Cable Sheathed in Vinyl
- Ballast: 3/8″ Galvanized Steel Ballast Chain
- Connectors: ASTM Universal Slide Connectors
- Hardware: Stress Plates, Grommets, Corner Plates
- Anchor Point: Every 50’
- Anchor Kits: Anchoring is crucial for the success of your project. Without proper anchoring your Turbidity Barrier will fail.
- Tow Bridles: Tow Bridles help distribute weight and prevent damage during deployment and adjustment.
- Accessories are an important component for the silt curtain installation. Click the link above to Learn more about these Type II silt curtain accessories, their specs, and uses. View our Ground Anchor Installation and Silt Curtain Anchoring Instructions.
