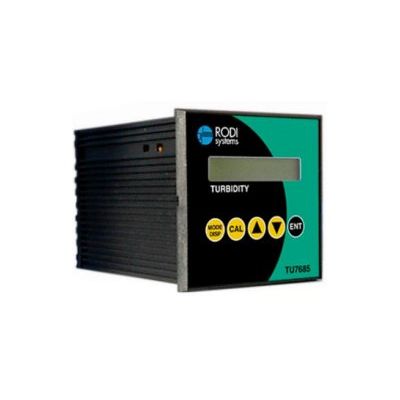

RODI - Model TU 7685 -Turbidity Meter
The TU 7685 turbidity meter is a versatile turbidity instrument that demonstrates excellent sensitivity. The TU 7685 is panel-mounted in a standard 1/4 DIN cutout and is designed to be used with the TU 810 turbidity sensor. The meter may be located up to 300 feet from the sensor. The sensor may be used with the TU 910 sensor manifold for `flow through` applications. The TU 810 sensor may also be used in a submerged orientation.
Most popular related searches
turbidity meter
turbidity instrument
turbidity monitoring
turbidity sensor
turbidity control
humidity control
- Turbidity Monitoring and Control
- Range 0-4.000, 0-40.00, 0-400.0, 0-4000 NTU
- Resolution 0.05% of Full Scale
- Display Single Line LCD
- Controls Digital Keyboard
- Calibration Manual
- Environment Working Temperature 0°C to 50°C - 0% to 95% Relative Humidity (Non-Condensing)
- Relay Control Outputs Two Dry Contact Relays
- Setpoints Two On/Off Setpoints
- Delay Programmable
- Alarm One Dry Contact Relay
- Probe Cleaning Output One Dry Contact Relay
- Max Relay Resistive Load 5A 220 VAC
- Power 110/240 VAC 50/60 Hz
- Analog Output 0-20/4-20 mA Output, Isolated
- Mounting 1/4 DIN Panel Cutout
