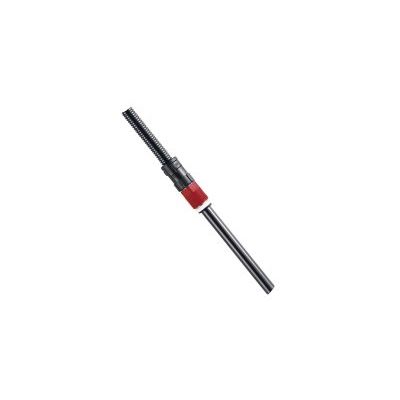

InPro - Model 8050 -Turbidity Sensor For Wastewater Applications

Specifications - InPro 8050 Turbidity Sensor For Wastewater Applications

Length: 120 mm
Material: Polysulfone
Measurement range: 10...4000 FTU, 0...250 g/l
Mounting options: Pg 13.5
Pressure resistance (bar): 2 bar
Pressure resistance (psi): 29 psi
Temperature range: 0...60 °C (32...140 °F)
Window: sapphire stick
Fiber cable: 6 m fixed duplex fiber optic cable
Fiber optic connectors: 2
Material Number(s): 52800209

Description

Single fiber principleThe single optical fiber sensor InPro 8050 provides a wide linear measuring range - even in ranges where competing absorbance probes have long reached their saturation limit. Backscattered light technology and the use of fiber optic cables enable a sensor design with uniform, unbroken surface structure. Therefore the InPro 8050 sensor is able to meet the toughest demands placed on optical sensors with respect to freedom of fouling and easy cleanability.

Features and Benefits

Improved process control at high concentrations
Single fiber backscattered light technology provides a wide linear measuring range up to 250 g/l suspended solids.

Reduced maintenance
The sensor resists abrasive particles and fiber fouling in wastewater applications due to sapphire stick protection and uniform, unbroken surface structure.
