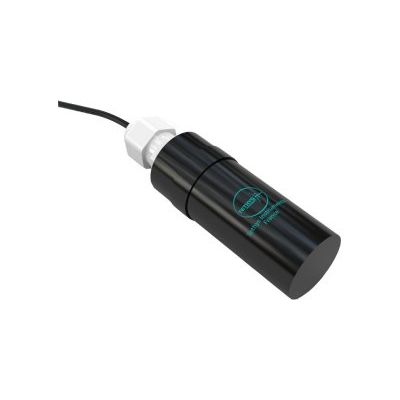

Tethys Instruments - Turbidity Sensor Probe
Tethys Turbidity probes are based on Nephelometric Method (ISO 7027 – EN 27027). A light beam is sent to the sample through an optical lens. The 90 degree scattered light by suspended particle is collected by the probe through a second lens and it is converted in an electric signal proportional to the turbidity of the sample. The probe uses an infrared light and the measuring is not affected by the color of the sample. They are suitable for measurement of turbidity in water quality monitoring, municipal and industrial water treatment and Aquaculture.
Most popular related searches
wastewater treatment plant
municipal wastewater treatment plant
industrial wastewater treatment plant
water treatment plant
turbidity probe
wastewater treatment
drinking water treatment plant
industrial wastewater treatment
municipal wastewater treatment
industrial water treatment
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
- Measurement Range: 0 – 4.000 NTU, 0 – 40.00 NTU, 0 – 400.0 NTU
- Measurement Technique: Nephelometric
- Detector: 90° scattered light detector
- Light Source: Infrared
- Ambient Temperature Range: -5 to 50 °C
- Working Pressure: 6 bar maximum at 25 °C
- Body material: PVC
- Integral Sensor Cable Length: 10 meter
- Mounting: In-line or In-flow
- Probe Warrantee: 1 Year
- EXT-TURBNEPH-H:
- Nephelometric turbidity probes high range
- Range: 0 – 400 NTU
- 10 meters cable
- EXT-TURBNEPH-M:
- Nephelometric turbidity probes medium range
- Range: 0 – 40 NTU
- 10 meters cable
- EXT-TURBNEPH-L:
- Nephelometric turbidity probes low range
- Range: 0 – 4 NTU
- 10 meters cable
