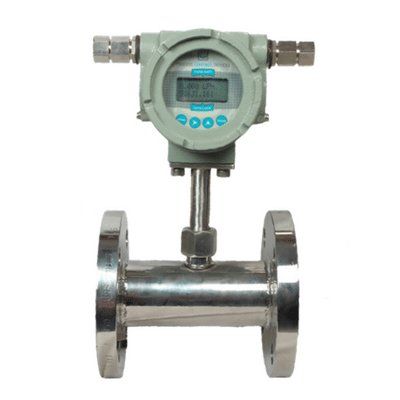

Turbine Flow Meter
Process Control Devices manufacture various digital flow meter used in industry as per fluid property. Turbine flow meter is used for measuring the instant flow rate of clean liquid as well as gas. It consists of turbine rotor mechanism, pickup coil, and an electronics module. the velocity of flow is directly proportional to the flow rate. Media it can measure is water, oil, diesel, solvent, chemical and any clear liquid. viscosity should be less than 20 CP.
Programming: By Membrane Key
Power Supply: 24 VDC Isolated, 230 VAC, 110VAC
Out Puts: 4-20mA, 4wire, Pulse,
Communication : RS 485 MODBUS
Accuracy: ± 1% of FSD & ± 0.5% on request
Linearity: +/- 0.5 %
Repeatability: 0.5%
Fluid: Liquids
Sp. Gravity: Up to 2.95
Viscosity: Up to 100 CP
Design Pressure: Up to 100 Kg/Cm2
Measuring Range: 0.2 to 350M3/hr
Line Size: 15 NB to 150NB
Turbine Rotor: SS 410
Pipe MOC: SS304, SS316
Design Temperature: Up to 150 DegC
Connection: Flanged to ASA, BS, Screwed , TC
