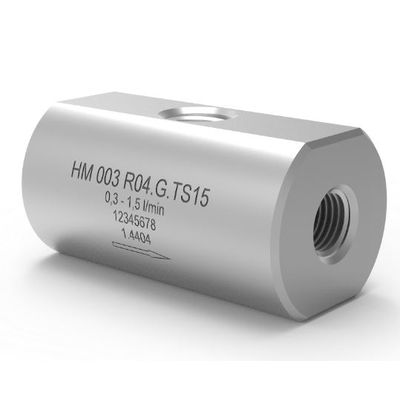

Kem-KüppersModel HM R -Turbine Flow Meters

SHARE

The HM R turbine flow meter series (R for Female Inch Threads) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium viscosity liquids, such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic fluids is possible. Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media.

Most popular related searches
  • Measuring Ranges : 0.3 up to 400 l/min
  • Repeatability: ±0.05 % (under the same conditions)
  • Linearity: ±1 % of actual flow
  • Viscosity Range: 0.8 up to 30 mm²/s
  • Materials
    • Housing: as per DIN 1.4404 [AISI 316L] (others on request)
    • Wheels: as per DIN 1.4460 [AISI 329] (others on request)
    • Bearing: Tungsten carbide sleeve bearing
  • Pressure: up to 630 bar [9,140 psi]
  • Medium Temperature: -60 °C up to +350 °C [-70 °F up to +662 °F]
