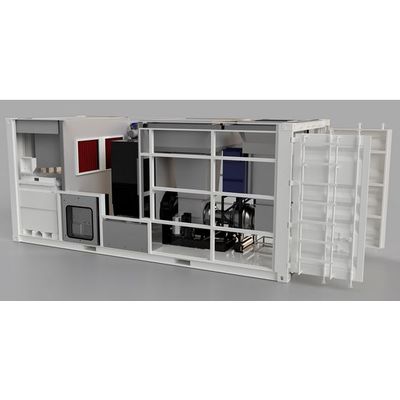

Turbine Marine - Portable 1MW Containerized Generator
GENERATOR SPECIFICATIONS: 1MW Continuous Duty. 1.1MW Standby peak. Highly portable built-in air lift rigging. Size 20’L x 8’W x 8’H. Weight: 19,500 lbs. 380-400V, 50 Hz. 440-480V, 60 Hz.
Most popular related searches
engine air filter
water mist system
epoxy coating
welding exhaust
water filtration system
exhauster system
air filter
salt water system
water filtration
dust misting system
PRODUCT DESIGN
- Stamford Electric Generator
- Woodward 3500 XT
- Synchronizing capability up to 34 units
- Self-monitoring safety and shutdown system
- Fuel and engine oil heater
- Start battery heaters
- Engine de-icing system for arctic conditions
- Dust / salt water mist filtration system
- Durable Urethane primer / paint
- Quick-mounted rolling chassis system
- Rapid deployment and quick setup design
- Simple design, user-friendly operation
- 1-Year manufacturer’s warranty
ENGINE SPECIFICATIONS
- Turbine Marine Gas Turbine (TM1500)
- 1800 rpm turbine output shaft
- Air-cooled
- 1500 + hp
- 24V Electrical starting system
- Start time 30 seconds
- Stainless steel welded exhaust system with epoxy coated insulation
- Washable engine air filter
FUEL SPECIFICATIONS
- Diesel, Gasoline, Jet A, JP8, TS1, Kerosene, Bio Diesel
- Fuel Flow 500kW 66ghp/250lph
- Fuel Flow 850kW 93ghp/352lph
- Fuel Flow 1000kW 115gph/435lph
- Simultaneous multiple fuel capable
- Built-in fuel tank for 5 hours of operation
- Built-in load-bank for continuous low kilowatt operation
EQUIPMENT SOUND LEVEL
- 85db’s at 1m
