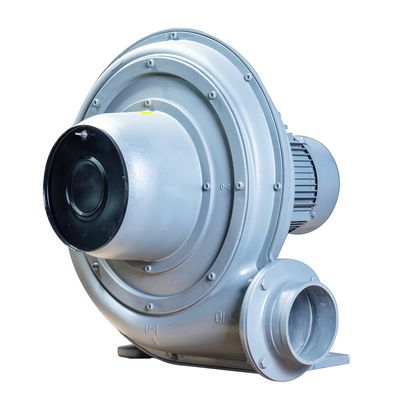

LUOMEI - Model TB -Turbo Blower Centrifugal Fan

TB series Turbo Blower Centrifugal Fan

TB100-1, single phase 220V or three phase 220/380V, inlet 200mm, outlet 100mm

0.75KW, at 50Hz max airflow 18m3/min, max pressure 1.3kpa, at 60Hz max airflow 22m3/min, max pressure 2.1kpa,

TB100-2, single phase 220V or three phase 220/380V, inlet 200mm, outlet 100mm

1.5KW, at 50Hz max airflow 20m3/min, max pressure 2.0kpa, at 60Hz max airflow 25m3/min, max pressure 3.0kpa,

TB125-3, three phase 220/380V, inlet 252mm, outlet 125mm

2.2KW, at 50Hz max airflow 33m3/min, max pressure 2.4kpa, at 60Hz max airflow 39m3/min, max pressure 3.6kpa,

TB150-5, three phase 380V, inlet 252mm, outlet 150mm

3.7KW, at 50Hz max airflow 48m3/min, max pressure 3.8kpa, at 60Hz max airflow 53m3/min, max pressure 5.3kpa,

TB150-7.5, three phase 380V, inlet 252mm, outlet 150mm

5.5KW, at 50Hz max airflow 50m3/min, max pressure 4.0kpa, at 60Hz max airflow 65m3/min, max pressure 5.3kpa,

TB150-10, three phase 380V, inlet 252mm, outlet 150mm

7.5KW, at 50Hz max airflow 60m3/min, max pressure 4.0kpa, at 60Hz max airflow 75m3/min, max pressure 5.3kpa,

TB150L-10, three phase 380V, inlet 252mm, outlet 150mm

7.5KW, at 50Hz max airflow 40m3/min, max pressure 5.0kpa, at 60Hz max airflow 53m3/min, max pressure 6.5kpa,

TB200-15, three phase 380V, inlet 315mm, outlet 200mm

11KW, at 50Hz max airflow 65m3/min, max pressure 5.0kpa, at 60Hz max airflow 85m3/min, max pressure 6.5kpa,

TB200-20, three phase 380V, inlet 315mm, outlet 200mm

15KW, at 50Hz max airflow 90m3/min, max pressure 5.0kpa, at 60Hz max airflow 100m3/min, max pressure 7.0kpa,

if you like these models, welcome to contact us.
