This compact field and industrial instrument is used for both ground based and airborne applications requiring high speed spectrometry, and utilizes our patented Turbo FT technology. Applications in remote sensing for geological mapping, airborne chemical agent detection, and online process control systems. Our rugged and compact design allows you to 'Take It There'.

  • Rapid Scanning of 25-100 spectra/sec
  • Rugged high throughput interferometer
  • Sensor weight < 4 kg
  • Portable “lunchbox” computer
  • Real-time output
  • Instrument control software, including ratio and difference math functions

  • Enables monitoring of rapidly changing targets or processes
  • High speed scanning reduces influence of vibration
  • Compact size reduces associated packaging / mounting costs and weight

  • High speed continuous remote sensing
  • Ground Truth for geological mapping
  • Environmental monitoring and compliance

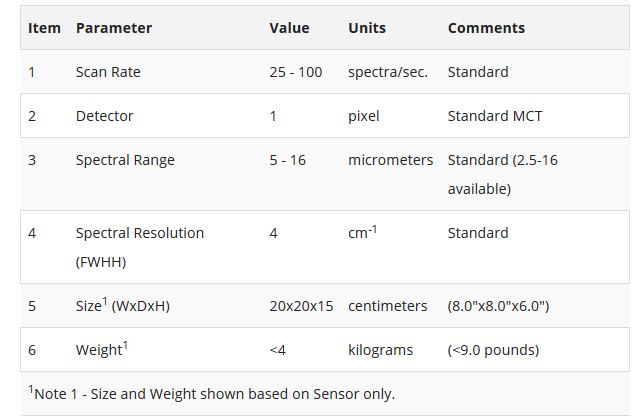

Note 1 - Size and Weight shown based on Sensor only.

  • Optical/Electronic module, including interferometer, LN2 cooled MCT detector and pre-amp
  • Drive & sampling electronics
  • Stand-alone AC powered portable Windows computer with LCD screen
  • Real-time processing software with ratio, difference, radiance, and emissivity
  • 1″Θ, 4.8o field of view (FOV) fore optics with through-the-lens viewing

  • LN2 cooled two-color InSb/MCT detector for 2.5 to 16 micron operation
  • Thermoelectrically stabilized blackbody
  • 2″ or 4″ telescope
  • Pouring Dewar (4 liter), tripod
  • Portable computer with built-in battery and charger for standalone, off-grid operation
