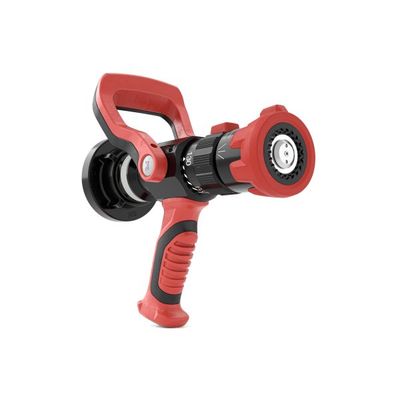

AWG - Model EVO 130 C -Turbo Spritze
The AWG Turbo-Spritze EVO 130 is a hollow jet branchpipe, according to DIN EN 15182 Function category 3 with adjustable jet shape and selectable constant flow rate 40 / 60 / 130 l/min at 6 bar. The Turbo-Spritze EVO is designed for use with the quick-attack line and for universal use in firefighting where tactically lower flow rates are required. Flow settings 40 / 80 / 130 l/min at 6 bar.
Most popular related searches
- Length [mm] : 280
- Width [mm] : 120
- Height [mm] : 255
- Weight [kg] : 2,150
- System Inlet : Storz
- Size Inlet : 52 (C)
- Inlet : Storz 52 (C)
- Inlet swiveling : Ja
- Nominal size : 130
- Flow rate at reference pressure p1 [lpm] : 40 / 80 / 130
- Reference pressure p1 [bar] : 6
- throw distance at reference p1 [m] : 15-22-27 (full jet), 5-15 (spray jet)
- max. permissible operating pressure [bar] : 16
- Spray angle [°] : 0 - 120
- Handle : ja
- Product colour : black; red
- Material adapter : Aluminum
- Applicable Standard : DIN EN 15182
