Turner EnviroLogic - Venturi Scrubber

The throat of the Venturi Scrubber can be manually or automatically adjustable to accommodate variable gas flow rates.  Venturi Scrubbers are resistant to clogging, scaling and wet/dry line build up since the venturi walls are continuously wetted.

In the Venturi Scrubber the incoming particulate laden gas is accelerated to a high velocity in a diverging section just before entering the scrubber throat where it comes in contact with the scrubbing liquid, typically water.  The liquid is atomized into fine droplets that entrap the particulate with very high collection efficiency.  The higher the pressure drop across the throat, the higher the collection efficiency.

After leaving the venturi throat, the cleaned gas decelerates through a diverging section and the particulate-laden droplets collide and agglomerate.  The large droplets are driven into the flooded elbow, that serves as an abrasion barrier, and flow into the bottom of the cyclonic separator.  Droplets that are too small for collection at the flooded elbow are collected in the cyclonic separator and flow into the bottom of the separator where a vortex breaking baffles keep the collected water flowing easily into the sump tank.  Water from the sump tank is recirculated back to the inlet of the Venturi.  A small portion of sump water containing 3% to 5% solids is bled off to a drain. Fresh make-up water is introduced into the piping leading to the venturi inlet so that the cleanest water meets with the incoming gas.

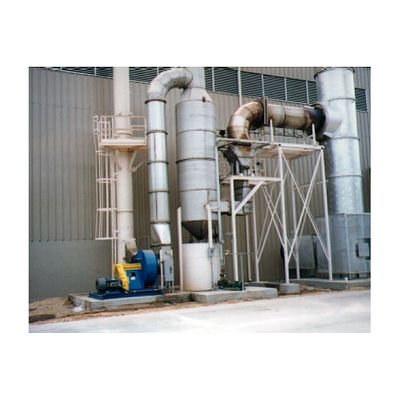

All Turner EnviroLogic Venturi Scrubbers are complete skid mounted systems that are pre-piped and pre-wired to minimize field installation efforts.  Many grades of carbon and stainless steels are used depending on the temperature and corrosive effects of the gases to be scrubbed.  Chemical addition systems can be added to neutralize acid gases.
