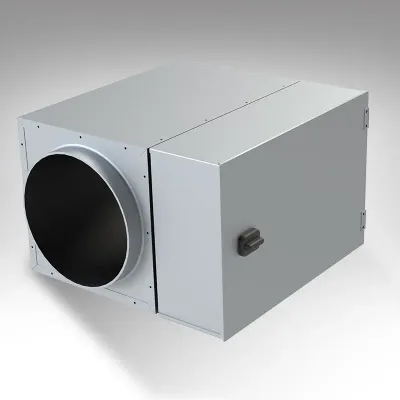

TUTCO - Model E-Series -Round Duct Heaters
TUTCO E-Series Round Duct Heaters are engineered for integration with various forced air HVAC systems, including heat pumps and air conditioners. These heaters utilize contactors, relays, sequencers, or solid-state devices for direct control and are offered in single and three-phase options capable of handling up to 480V. Constructed with unified pre-wired control boxes, they are designed to fit diameters of 6, 8, 10, and 12 inches. These duct heaters are recognized for their quality, being UL 1996 listed and certified with UL and ETL marks for both the US and Canada. Prominent in both commercial and residential applications, they ensure efficient heat distribution in various environmental conditions. Their robust design and compliance with certification standards make them suitable for engineers and installers focusing on reliable and efficient HVAC solutions.
TUTCO E-Series Round Duct Heaters (EPH) are used with heat pumps, air conditioners, or other forced air HVAC systems. They are controlled by contactors, relays, sequencers or solid state devices. Round Series Duct Heaters are pre-wired with customer specified integrated control boxes and available in both single phase and three phase solutions up to 480V. These are available in 6″, 8″, 10″ and 12″ diameters.
- Zero Clearance Approved
- Flex duct can be mounted directly to unit (250°F / 121°C rated), no transition or extra metal duct required
- Factory installed airflow switch and probe
- No need to specify right or left airflow. Superior design allows for operation in either direction.
- Widest range of KW offering in the marketplace
- Single Point Power Connection
- Designed for up to 100°F / 37.8°C inlet air
- UL Listed product for the US and Canadian market
Ideal for commercial and residential applications.
- Primary Heating
- Secondary Heating
- Space Heating
- Auxiliary Heating
- Reheating / Recirculating Air
