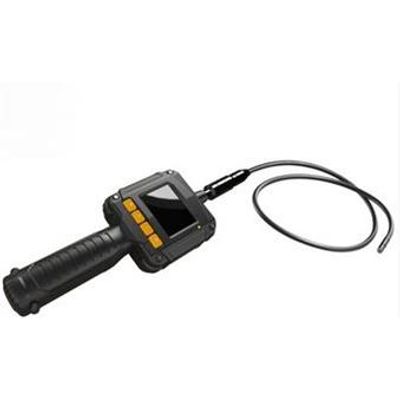

TvbTech - Model GL9008 -Portable Industrial Videoscope Endoscope Camera

Packing details:

• 1 unit in one carton
• Carton G.W.: 4.9kg
• Carton Measurement: 34*33.5*22.5cm

• Video out function for viewing in big screens
• Image flip function to view in different angles
• 2.31" TFT-LCD color monitor,brightness adjustable
• Mini 8mm waterproof camera with flexible extended tube
• Manufactured and tested to IP67 waterproof standard
• Requires 4 AA batteries for camera power supply, 6 Hours Working Time
• 3 useful accessories included: hook, mirror and magnet
• Adjustable brightness on lens-mounted LED light

• Image Sensor:1/9-inch CMOS
• Effective Pixels:640*480P
• Video System:PAL/NTSC
• Contrast:300:1
• Brightness:220CD/m2(TYP)
• Lens Diameter: 8mm
• Hose length: 1M
• Tube Diameter: 9mm
• Angle: 48 degrees
• Minimum illumination: 0Lux [LED ON]
• Waterproof: IP67(for lens/tube only)
• LCD Type: 2.31 "TFT-LCD
• LCD Effective pixels: 960 * 240P
• Video format: PAL
• Power Suply:AA*4 batteries(1.5V*4,not included)
• Work Time:6 Hours(Max)
• Current consumption: 238MA + -5MA / 6V
• Output Signal Impedance:75ohm
• Output Signal Level:0.9-1.3vp-p
• Working temperature: -10 degrees C -50 degrees C
• Humidity: 15-85% RH
• Approx Weight:407g

• Home inspection: electrical wire in wall, pipe blockage, check something under sofa
• HVAC: Inspect inside ducts, behind motors and compressors
• Automotive: View inside or around engines and transmissions
• Industrial: Inspect weld integrity, process equipment, gears, molding machines
• Aerospace: Aircraft inspections for contamination, debris, cracks or other damage
• Outdoor adventure: check mouse or snake holes
• Government: Safety and security inspections
