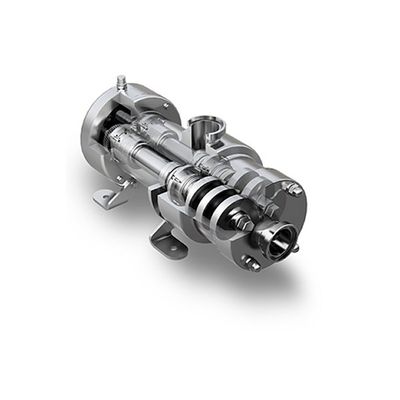

ITT Bornemann - Model SLH-4G Series -Twin Screw Pump
The consistent ongoing development of the SLH has been based on our many years of experience working with our customers, general market requirements and the demands of relevant directives and certifications. Bornemann SLH twin screw pumps are single-flow and self-priming. Two contact-free intermeshing screws and the pump housing form closed chambers that, according to the direction of rotation, constantly move towards the pressure discharge end of the pump.
Most popular related searches
- Pressure stability increased by around 25%
- Even more flexibility in terms of the rotating elements - a solution for every application with just 4 different sizes
- Optimized sealing technology
- „Tube design“ - the most hygienic and optimum profile/shape - perfectly rounded
- Hygienic frame construction
- Self-priming
- Compact construction
- Change of pumping direction - simple
- High viscosities possible
- Low pulsations
- Contact-free intermeshing screws
- Pumping and cleaning processes with one pump
- Low shearing to the pumped fluid, gentle handling
- Minimal maintenance, reduction in cleaning pumps and pipes
- Saves space through this 2 in 1 technology
- Chemicals
- Beverage Industry
- Dairy Industry
- Convenience
- Sweets
- Meat products
- Food & Pharma
- Cosmetics
- Capacity m³/h: up to 230
- Capacity gpm: up to 1,013
- Differential pressure in bar: up to 25 / 50 (DLH)
- Differential pressure in psi: up to 365 / 730 (DLH)
- Speed range min-1 (rpm): up to 3,600
- Viscosity mm²/s (cSt): up to 1.000.000
- Max. temperature celsius: 200
- Max. temperature fahrenheit: 390
- Heating temperature: up to 130
- Heating medium: various
- Flange connections: DIN 11851 dairy coupling, DIN 11864 aseptic couplings and other connection options on request
- Ranges: SLH 4G 1000 / SLH 4G 2000 / SLH 3000 / SLH 4000
- Direction of operation reversible operation possible
