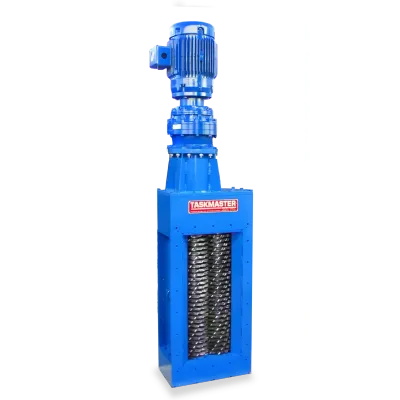

Franklin Miller Taskmaster - Model TM1600 -Twin-Shaft Grinder

SHARE
The TASKMASTER TM1600 is a robust twin-shaft grinder engineered for the handling of challenging materials such as biosolids, rags, sludge, and various types of waste. Designed to excel in demanding environments, it is often employed with a powerful 10 HP motor, though it can be upgraded to a 20 HP motor for particularly tough applications. This grinder boasts heavy-duty cast framing and oversized hex shafting, ensuring durable performance. It is suitable for both full or partial submergence installations, utilizing a submersible explosion-proof motor if needed. Available drive configurations include standard electric motors or hydraulic systems, all tailored to specific installation needs. The grinder's cutter-spacer combinations, crafted from high-strength alloy steel, are hardened for enduring use and can be customized to meet precise application demands. With flexible installation options, the TM1600 is ideal for channels, wells, pipelines, and gravity-fed systems.
Most popular related searches
double shaft grinder
wet well
submersible motor
biosolids sludge
pipe system
well water
sewage grinder
waste screening
bar screen
solid waste

The TASKMASTER® TM1600 powerful twin-shaft grinder plows through a large volume of biosolids, rags, sludge, solid waste, institutional waste, screenings and more. The TASKMASTER TM1600 has proven its heavy-duty capabilities and valuable service in hundreds of installations worldwide. This unit features such construction features as heavy cast framing, oversized 2-3/4" hex shafting for reliability and combination cutter-spacers.  It typically employs a 10 HP motor and drive but can accommodate up to a 20 HP motor and drive for the really tough jobs.

This unit is a high-strength grinder ideal for a wide variety of applications. The TASKMASTER TM1600 has world-class quality and proven reliability.

  • Heavy-Duty Construction
  • Heavy Solids Capacity
  • Rugged 2-3/4” Hex Shafting
  • Proven Reliable Mechanical Seal
  • Channel, Gravity or Pipe System

These units can be installed for full or occasional submergence with our unique submersible explosion-proof motor and drive. They can be supplied with support frames or channel frames as well as guide rails to facilitate removal from wet wells. A variety of drive configurations is available to meet most installation requirements including standard electric motors, submersible explosion-proof motors, extended shafts or hydraulic systems

The TASKMASTER® TM1600 employs unique cutter-spacer combo's.   These cutting elements combine individual cutters and spacers into high strength elements for high strength and reduced overall components  The cutter/spacers are available in a variety of profiles to match your exact application requirement.  They are constructed of high strength alloy steel and then hardened and ground.  They also available in hardened stainless steel.

The versatile TASKMASTER TM1600 can be configured for liquid channels, wet wells, water inlets or pipeline installations. It can also be used in gravity-fed installations, such as for screenings discharged from a bar screen. Units can be provided with a stand and hopper for a variety of gravity-fed shredding applications.
