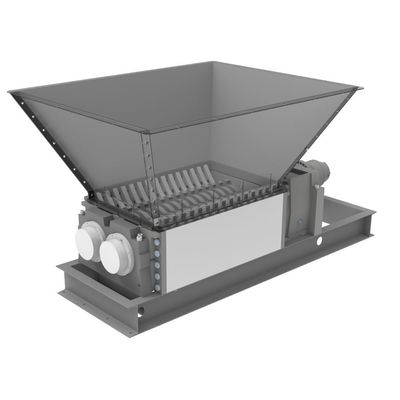

WRS - Model SH100 -Twin-Shaft Shredder

FromWRS Italia Srl

SHARE

Grinding body: In steel complete with 2 hexagonal shafts counter-rotating at different speed. Connecting frame in welded C-section steel bar. Right-angle or in-line planetary gearbox. Colours gray RAL 7024 and RAL 7035.

Most popular related searches

hydraulic control system

double shaft shredder

hydraulic shredder

electrical safety

shredding system

Safety self-controlling module for safety devices supervision
Electric motor 75 KW – 400V/50Hz (protection degree IP55 and insulation class F)
Electric control board (protection degree IP55)
Multifunction PLC
Automatic reversal device in case of overloading
Programming of number of inversions

Loading hopper in steel plate thickness 10mm.

Heat exchanger: 1,1 KW
Oil tank capacity: 300 L
Standard oil hoses length: 4000 mm
Mass: 1200 kg

Industry 4.0 Smartbox One module

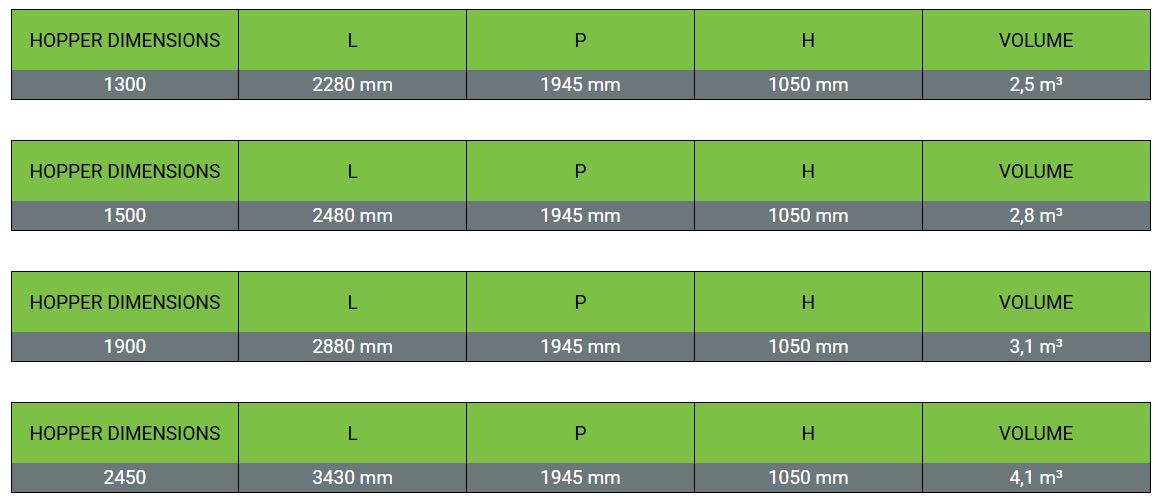

Customizable loading hopper
Hydraulic ram-feeder
Customizable support
Easy removal of scrapers
Customizable colours

Blades range with different profiles and kind of steel according to the material to be processed
Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 90mm
Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations
Double mechanical seals with vent chamber
Scraper hooked to the sides through sliding guides

Extended warranty on request
