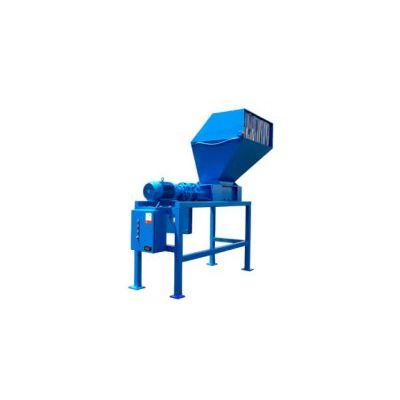

Taskmaster - Model TM1600 -Twin Shaft Shredder For Solids/Liquids and Institutional Waste
The Taskmaster Model TM1600 is a powerful workhorse that can shred heavy solids in both gravity and liquid systems. This unit can be installed horizontally with a stand, hopper vertically for channel or pipeline applications with flange adapters. Typical applications include rejects and returns, garments, filters, containers, plastics, turnings, packaging, wood, paper, documents, electronic components, concession waste, sewage screenings, in-channel raw sewage, correctional institution effluent and more. The TM1600 features a fully sealed body housing, 2-3/4" hardened hex shafting, mechanical seals and direct inline or optional right angle gear drive. Options include: stainless steel construction, enclosed hopper, flange adapters, channel frames, infeed conveyor, discharge washer or compactor, hydraulic drive, space saving right-angle gear drive and more.
Taskmaster TM1600 Specs
- Cutting: Intermeshing Cutters on Twin Shafts
- Power: Low Speed, High Torque
- Shaft: 2-3/4" Hex
- Cutters: Standard Nom. 3/4" Thick Alloy Steel
- Motor: 10HP- 20HP
- Drive: Planetary Gear Drive
- Seals: Mechanical Shaft Seals
- Chamber Sizes: Nom. 14.75" x 20", 14.75" x 24", 14.75" x 30", 14.75" x 42"
- Hopper Opening: to 30" x 54"
- Overall Dimensions: from 80" to 124" x 30" x 90 high
- Weight: 1800# to 2600#
- Material of Construction: Steel
Options:
- Stainless Steel Construction
- Infeed and Discharge Conveyors
- Water-tight Construction
- Pressure Rated Design
- Flange Adapters
- Submerged Applications
- Hydraulic Drive and Mobile Applications
- industrial-Duty, High Torque Shredder
- 2-314" Hexagonal Alloy Shafting
- Heavy-Duty TEFC Flanged Mounted Motor
- Compact Design for Easy Truck Mounting
- High Strength Alloy Steel Cutters
- PLC based Controls with Auto-Reversing
- Planetary Gear Drive
- Quiet, Low Speed operation
- High Capacity
- Up to 20 HP Motor
- Suitable for Mobile Use
