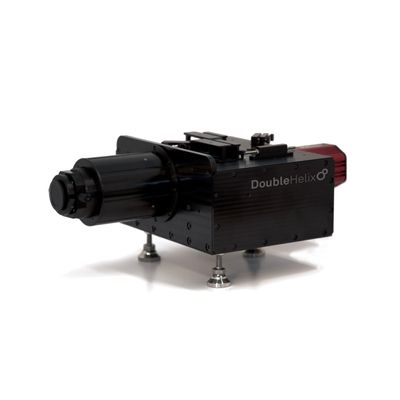

Double Helix - Model SPINDLE2 -Two-channel 3D Microscope Module
SPINDLE2 Two-channel Microscope Module for Simultaneous Multi-color, Multi-depth 3D Imaging; SPINDLE2 is your solution to achieve single-shot 3D super-resolution and 3D wide-field imaging. Offering two simultaneous channels, in combination with Double Helix Optics’ library of PSF engineered phase masks, the SPINDLE2 enables multi-color, multi-depth imaging capabilities out of your existing microscope system. With the ability to individually adapt each channel, the imaging combinations are endless. For applications requiring full-field imaging, the SPINDLE2 bypass mode preserves the full imaging functionality of your microscope.
Unmatched Depth
20 µm single-shot depth range
Scan-Free 3D
PSF engineering enables full 3D imaging without axial scanning
Multi-Channel
Two simultaneous channels offer endless imaging combinations
Easy Set-Up
Compatible with most microscopes and scientific cameras
Everything Included
Includes two phase masks and components for two-channel imaging
Wide field-of-view
Utilize full FOV’s, up to 25 mm
Library of interchangeable Phase Masks
Complete solution with 3DTrax Software
- Multi-Particle 3D Tracking
- Extended Depth-Of-Field Volume Imaging
- Lightsheet Microscopy
- Multi-Color 3D Single Molecule Localization (SMLM)
- Whole-Cell + Single Molecule Imaging
- Multi-color Widefield Microscopy
Number of Optical Channels: 2
Number of Camera Ports: 1
Dimensions: -
Microscope Mounting: C-Mount Compatible
Camera Mounting: C-Mount Compatible
Maximum Field Of View
- Two Channel
- Single Channel/Bypass: Ø25mm
Bypass Mode: Yes
Transmission Efficiency: 95%(Min)
Transmission Wavelength Range: -
Engineered PSF Phase Mask Slots: 2
Filter Slots: 2
Abberation Correction: -
