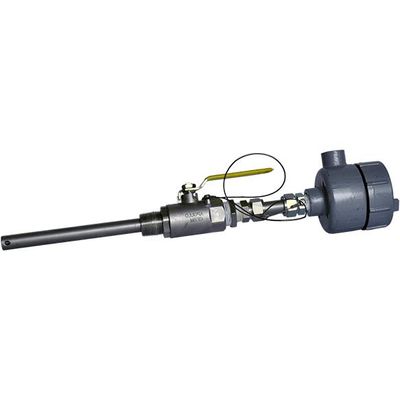

Barben Analytical - Model CS40 -Two Electrode Conductivity Sensor
For retractable in-line installations the CS40 Two Electrode Conductivity Sensor comes complete with a 1" isolation ball valve. Insert the sensor directly into the processes up to 250 PSIG.
Most popular related searches
- Hot Tap insertion sensor
- Ratings from 100PSIG @ 150oC to 250PSIG @ 205oC
- Designed for 1 inch Male NPT Ball valve
- Broad range of cell constants 0.05/0.1/1.0
- 316 Stainless Electrodes, O-ring options of EPDM (Standard), Viton (Special), Buna-N (Special)
For applications where a sample line is not present the CS40 Two Electrode Sensor provides an easy method to remove and isolate the sensor for cleaning and calibration.
Wetted Material
- Electrodes: 316 Stainless Steel
- Insulator: Kel-F PCTEF (std.), PEEK (high temp)
- Seals: EPDM / Viton / Buna-N
- Hardware: 316 Stainless Steel
Temperature Compensation
- PT100 RTD
- PT1000 RTD
- 8550 Ohm (Honeywell)
