Two Lever Valve

SHARE

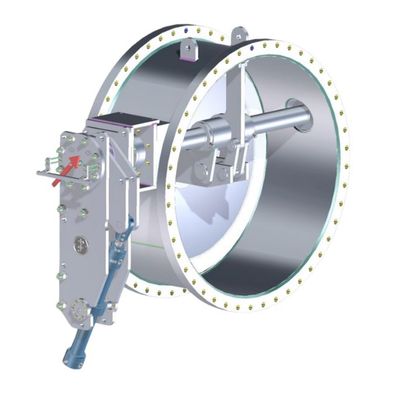

This shut-off and safety valve for gaseous media includes a centrally positioned guide lever to control plate movement.

Most popular related searches

hydraulic pneumatics

Operating temperatures up to 600 °C (1100 °F).
Nominal diameters up to 4000 mm (160 inch).
Pressure rating up to PN 10.
Valve actuation in accordance with customer’s demands (man/electrical/hydraulic /pneumatic).
The shaft is arranged close to the valve centreline.
A special lever mechanism connects to, and applies pressure on the centre of the disc.
Materials according to operating conditions.
Pressure and flow direction according to operating conditions.

Various sealing seat designs.
Compact design.
Welded steel construction.
Plane-parallel, friction-free placement and removal of the flap plate on or from the housing sealing seat.

High operating pressure in open as well as in closed position.
High frequency of operation.
Temperature fluctuations.
Short opening and closing time.
