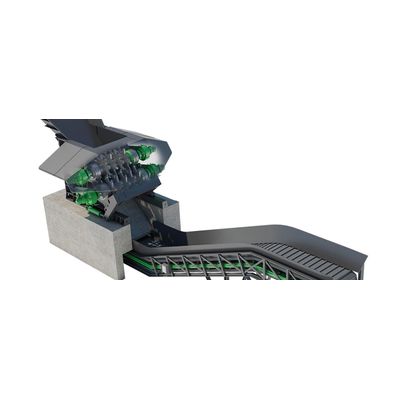

Danieli - Model ZDS & ZTS -Two or Three-Shafts Pre-Shredders

FromDanieli Centro Recycling is a part of Danieli group

SHARE

Pre-shredders are generally installed upstream from a shredding system to prepare the material for entry into the shredder. Adding a pre-shredder to the metals process allows the operator to control the feed rate, leading to a more uniform flow of material through the shredder itself, and a higher density product. With their first-rate tooth profile and very high torque, Danieli Centro Recycling pre-shredders are truly essential for processing waste metal such as end-of-life vehicles, domestic waste, WEEE, etc. in bulk or baled form.

Most popular related searches

car recycling waste

shredding system

double shaft pre-shredder

triple shaft shredder

shredder process

Supplied with an output of 25 to 120 tons per hour (according to the model and products to be processed), pre-shredders are used to control the grading and quality of products prior to feeding into a shredder.

Improved shredder production by preparing a homogeneously graded, densified product, reducing shredding time.
Significant reduction of explosions in the shredder.
Detection of unshreddable material upstream from the shredder.
Increased service life of wear parts in the shredder.
Smoothing of shredder electricity consumption.
Optimized logistics for collecting products to be processed, by reducing intermediate handling and transport volumes.

Easier material gripping via articulated ram or third shaft.
Separate adjustable shaft rotation speeds.
Very high shredding torque.
Shafts equipped with abrasion-proof steel profiled toothing, with ends reloaded with high-carbon steel.
Automatic rejection of unshreddable material by inverting the feed direction.
Independent shaft drive system (2-shaft version).
ZDS range > high production
ZTS range > fine grade

The ZDS and ZTS Ranges of Pre-shredders have the following characteristics:

2 or 3 shafts
Working width of 2200-2500 mm
Installed power of 840kW
