Advanced Energy - Model Mikron M315X-HT Series -Two-Piece High Temperature Blackbody Calibration Source

The Mikron^® M315X-HT blackbody calibration sources meet the exacting parameters of infrared focal plane array detectors, thermal imagers, and FLIR systems testing in projection scenes and field applications where higher temperatures are required.

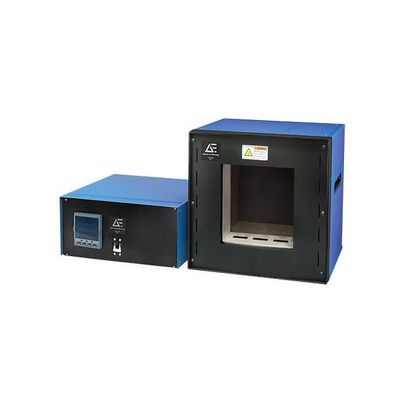

The M315X-HT blackbody sources are resistively heated by precision heating elements to provide uniform temperature distributions. The two-piece system is comprised of the controller module and a separate enclosure for the emitter source.

Emitter source temperature control is carried out by a precision digital PID controller, mounted in a 7 in (180 mm) high 19 in rack mount enclosure.

• Select from four aperture sizes from 4 x 4 in to 12 x 12 in
• Calibrate and verify the output signals of pyrometers, thermal imagers, etc.
• Achieve high accuracy and repeatability
• Control emitter source temperature with a precision digital PID controller

• High emissivity with unchallenged stability and uniformity
• Uniform temperature distribution with precision heating elements
• Furnished with a certificate of calibration traceable to NIST
• RS232 (standard) or RS485 serial communication
• Stable RTD ensures long-term temperature stability of the system

Measurement Specifications

• Temperature Range: Ambient 30 to 600°C (86 to 1112°F)
• Temperature Uncertainty: ±1°C at T < 100°C to ±2°C at T = 600°C
• Accuracy calibration performed radio metric ally, the uncertainty of emissivity and transfer standard are already included
• Temperature Resolution: arc
• Stability: ±0.2°C in still air environment Provided stable AC mains voltage and minimum airflow across the exit port or emitter plate
• Source Non-Uniformity: See datasheet
• Heated Emitter Shape: Flat plate
• Exit Port Diameter: M315X4HT:101 x 101 mm (4 x 4 in) M315X6HT: 152 x 152 mm (6 x 6 in) M315X8HT: 203 x 203 mm (8 x 8 in) M315X12HT: 305 x 305 mm (12 x 12 in)
• Emissivity: -1.00 effective emissivity at 8 to 14 urn A spectral emissivity graph is provided in the instruction manual
• Standard Calibration Method: Radiometric
• Temperature Sensor: Precision platinum RTD
• Warm-Up Time: < 30 minutes ambient to 50CTC
• Slew Rate to1°C Stability: M315X4-HT: -20° per minute T < 300°C -10° per minute T > 300°C
• M315X6-HT: -30° per minute T < 300°C ~15°per minute T > 300°C
• M315X8-HT: -20° per minute T < 300°C -10° per minute T > 300°C
• M315X12-HT: -14° per minute T < 300°C -7° per minute T > 300°C Typical—can vary from unit to unit
• Slew Rate to 0.1°C Stability: Approximately 30 minutes between A 100°C set points
• Typical — can vary from unit to unit

Communication / Interface

• Remote Set Point: RS232 (standard)
• RS485 (optional)
• Method of Control: Digital PID controller

Environmental Specifications

• Operating Ambient Temperature: 10to40°C(50to104°F)
• Cooling: Fan cooled, air inlet on reai: panel
• Operating Humidity: < 90% non-condensing
• HxWxD: See data sheet
• Weight: See data sheet
• CE Certified: Yes

Electrical

• Power Requirements
• M315X4-HT:
• PN 19230-1
• 220 to 240 VAC at 50 and 60 Hz 1050 VA
• PN 19230-3:
• 115 VAC at 50 and 60 Hz 1050 VA
• M315X6-HT:
• PN 19100-4
• 220 to 240 VAC at 50 and 60 Hz 4050 VA
• M315X8-HT
• (EU)-PN 19200-5
• 220 to 240 VAC at 50 and 60 Hz 4050 VA
• M315X12-HT:
• (EU&NAJ-PN 18769-3
• 220 to 240 VAC at 50 and 60 Hz 9000 VA
• (NA)-PN 18769-4
• 208 VAC at 50 and 60 Hz 9000 VA
