Advanced Energy - Model Mikron M345X Series -Two-Piece Low Temperature Blackbody Calibration Source with Large Surface Area, 0 to 170 °C
Advanced Energy’s Mikron M345X series blackbody calibration sources are comprised of a controller module and a separate enclosure for the emitter source. Temperature ranges from 0 to 170°C. High effective emissivity 1.0 at 8 to 14 µm. Aperture size range from 4 x 4 in to 12 x 12 in. High accuracy and high resolution (0.01°C). Excellent stability 0.05°C per eight hours in a still-air environment.

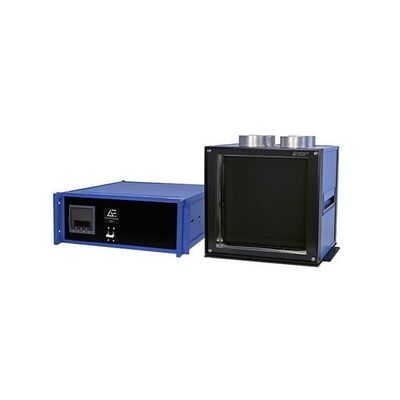

The Mikron® M345X series blackbody sources are cooled and heated by precision thermoelectric modules (Peltier method) and are available in absolute or differential configurations. The two-piece system is comprised of a bench mount controller and a separate emitter source enclosure.
The Mikron M345X series blackbody calibration sources combine fast slew rates, high emissivity, and unchallenged stability and uniformity. The M345X series satisfy the exacting parameters of infrared focal plane array detectors, thermal imaging and forward-looking infrared (FLIR) systems testing in static and moving scene applications.
- Select from four aperture sizes, ranging from 4 x 4 in to 12 x 12 in
- Calibrate and verify the output signals of pyrometers, thermal imagers, etc.
- Achieve high accuracy and high resolution (0.01°C)
- Control emitter source temperature with a precision digital PID controller
- High emissivity with either radiometric (standard) or thermometric calibrations (optional)
- Uniform temperature distribution with precision heating elements
- Furnished with a certificate of calibration traceable to NIST
- RS232 serial communication
