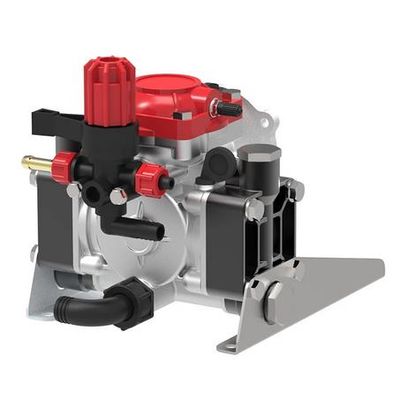

Imovilli - Model M 20 -Two Semi-Hydraulic Diaphragms Pump
20 l/1′ – 25 bar – 700 RPM. Two semi-hydraulic diaphragms pump, internal manifolds, anodized anti-corrosion pump heads, incorporated regulating valve only.
Most popular related searches
APPLICATIONS
- Spraying, Weeding and Disinfecting
VERSIONS
- Reduction gearbox for monobloc coupling to electric motors and explosion engines.
- Pump sets.
- Speed: 700 RPM max
- Pressure: 25 bar max
- Capacity: 20 l/1′ max
- Weight: 4 Kg
- Dimensions: 202x270x225
