Calgon Carbon - Model LM Series -Two Stage Modular Adsorption System
The Calgon Carbon LM Adsorber Systems are designed for removal of dissolved organic compounds from water or other liquids using granular activated carbon. The two vessel system design allows for flexibility in operation to meet the requirements of the treatment application.
The LM Adsorber Systems utilize the LM Carbon Adsorbers combined with a modular piping assembly, utilizing 2" diameter PVC piping and PVC ball valves to provide a complete two vessel adsorption system. With a single connection to the inlet and outlet, the piping network allows the two LM Adsorbers to operate in parallel or in series with either adsorber in the lead, or first stage, position. The piping can also isolate either adsorber from the process flow while maintaining operation through the other adsorber. This permits either operation using just a single adsorber, or allowing the second adsorber to have carbon exchanged and then brought back on line either as the second stage in a two stage operation, or as a parallel stage, without interruption of service.

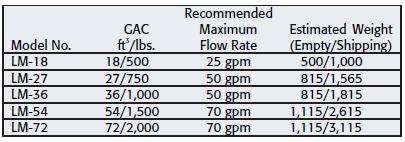

The LM Adsorber Systems can use any of the 3 sizes of the LM Adsorbers, which are designed to contain 500, 1,000 or 2,000 pounds of granular activated carbon each, selecting the proper size for either the flowrate or expected carbon usage. The LM Adsorber Systems can typically treat up to 60 gpm using two adsorbers in series, or up to 120 gpm with the adsorbers in parallel operation.
- Durable carbon steel construction
- Hydrotested to 113 psi
- Lifting lugs and forklift guides to facilitate moving and placement
- Lower PVC collection hub and laterals positioned for superior distribution and eliminates the need for GAC support bed
- Upper PVC distribution hub and laterals allow for backwashing and/or upflow operation
- Threaded influent/effluent connections
- 12"x16" elliptical manway for easy access
- Low profile design
- Heavy duty chemical resistant internal epoxy lining
- Exterior protected with a rust-inhibitive epoxy urethane for a durable finish
- Can be filled with any of Calgon Carbon`s reactivated or virgin activated carbons or other granular media
- Shipped with carbon and ready for service
- All models available for rent
- FDA & NSF approved linings
- Custom linings and colors
- Higher operating temperatures
- Stainless steel construction and stainless steel internals
- Flanged inlet/outlets
- Side manway
- PRV
- Air release valve
- Screened drain assembly
- Pre-piped dual systems
- Automated systems
