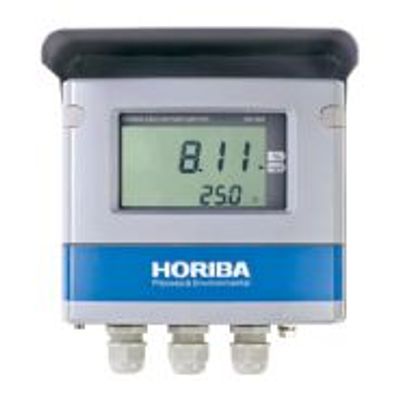

HORIBA - Model HD-300 -Two-Wire Transmitter

SHARE

Membrane type polarography method. Span calibration by air preceded by auto-zeroing (Electrical auto zeroing function). Self-diagnosis of membrane damage and infiltration into the probe. On-site membrane replacement as well as whole sensor replacement.

Most popular related searches
oxygen concentrator
temperature monitoring
membrane water treatment
dissolved oxygen monitoring
process water treatment
water treatment
membrane monitoring
process water
process water membrane
water process treatment
  • Measuring method : Membrane type polarography method
  • Measuring range:
    • Dissolved oxygen: 0 to 20 mg/L Resolution: 0.01 mg/L
    • Saturation ratio: 0 to 200% Resolution: 1%
    • Temperature: 0 to 50˚C Resolution: 0.1˚C
  • Repeatability : Dissolved oxygen concentration: ±0.5% full-scale or less, Temperature: ±0.5˚C (for equivalent input)
  • Linearity : Dissolved oxygen concentration: ±0.5% full-scale or less, Temperature: ±0.5˚C (for equivalent input)
  • Transmission output :
  • 4 to 20 mA DC Input/output insulated type
  • Maximum load resistance 600 Ω
  • Contact input
    • One point Contact format: Non-voltage a contact
    • Contact function: Transmission output is held for closed contact input.
  • Temperature compensation range : 0 to 50˚C
  • Ambient temperature : -20 to 60˚C
  • Temperature measurement element : Pt 1000 (0˚C) (Built into DO-1100 probe)
  • Calibration method : Atmospheric calibration or saturated liquid calibration
  • Self-diagnosis function : Calibration error, Sensor diagnosis error, Transmitter malfunction
  • Power supply :
    • 24 V DC (operational voltage range: 21 V to 32 V DC)
    • Power consumption 0.6 W or less
  • Construction :
    • Outdoor installation type: IP65 protection level
    • Mounting method: 50A pole or wall mounted
    • Case: Aluminum alloy Mount fitting/hood: SUS304
  • Compatible sensor : Sensor: 5505, 5510 Probe: DO-1100
  • Weight : Approx. 4 kg
  • Equipment protected : CE marking, FCC rules
