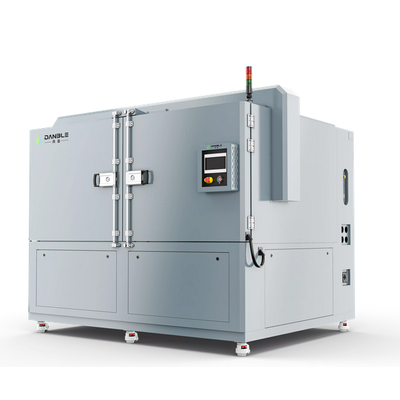

Danble - Model DBST-48 -Two-Zone (Left to Right) Thermal Shock Test Chamber

SHARE

Two-zone (Left to Right)Thermal Shock Test Chamber is mainly used to test products, components, components, etc. to undergo the ability to change sharply in temperature. It can test the effects of samples after or multiple temperature changes.

Most popular related searches
thermal shock test chamber
thermal shock testing
thermal shock test
test chamber
shock test
thermal shock chamber
chamber test
automotive testing
temperature chamber
temperature switch
  • Dual-Zone Design: Independent high-temperature, low-temperature chambers enable static sample testing, utilizes a bucket rapidly transferming specimens to the test area.
  • Ultra-Fast Temperature Switching: Achieve zone switching in ≤10s and temperature recovery in ≤5mins, meeting  MIL-STD-810D and JIS standards.
  • Energy Efficiency: Advanced refrigeration system reduces energy consumption by 25% compared to conventional models.
  • Customizable Configurations: Supports volume options and optional horizontal layouts for larger payloads.
  • Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65?.
  • Safety & Monitoring: OReal-time data logging,  multi-layer protection, pressure monitoring, and remote alerts ensure safe operation.
  • Internal Volume: 48L
  • Internal Dimensions: 400×400×300(mm)
  • Low Temperature Shock Range: -65? to 0 ?
  • High Temperature Shock Range: 60? to 150?
  • Pre-cooling Zone Cooling Range: -80? to 0?
  • Pre-heating Zone Heating Range: 60? to 180?
  • Pre-Cooling Zone Cooling Rate :     ≥1?/min
  • Pre-Cooling Zone Cooling Rate: ≥3?/min
  • Dwell Time: 16~60mins
  • Temperature Recovery Time: 1~5mins
  • Zone Swiching Time: ≤10s
  • Standard Reference: JESD22-A106B; GJB-150A;  MIL-STD-810G;  MIL-STD-202G,; GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T 5170.2; IEC 60068
  • Battery Testing: Suitable for lithium-ion, nickel-metal hydride, lead-acid, and solid-state batteries;
  • Electronics and Eletrical Products: Validate PCBs, semiconductors, and displays under thermal cycling;
  • Automotive: Tests battery components, ECUs, senosrs  and interior materials for extreme climates;
  • Aerospace and Defense: Certify chamber for high-altitude temperature stress;
  • Industrial and Consumer Products: Assess thermal stress resistance of mechanical parts and consumer electronics under various climatic conditions.
  • Medical Devices: Ensure reliability of diagnositc tools in fluctuating environments.
