TWS - Model PFM111C-1000MT -Elastic Load Cell

SHARE

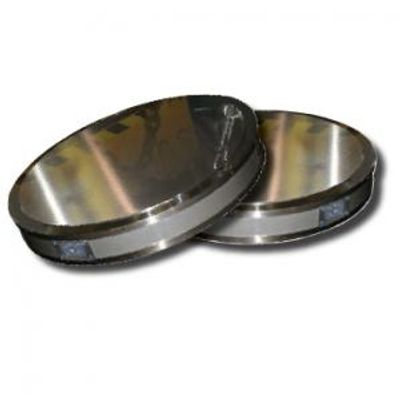

The PFM111C Series Rolling Mill load cells are a precision force measuring device designed to install in the modern rolling mill.  The magneto elastic desing allows for direct replacement of ABB 2nd generation QGPC-101 Series roll force load cells.

Most popular related searches
load cell
force monitoring system
precision monitoring system
  • Accuracy Class: < 0.5% in typical operating range
  • Linearity Error: < 0.5% in typical operating range
  • Hysteresis: < 0.2% of nominal load
  • Repeatability: +/- 0.1% of nominal load
  • Compression: 0.05mm
  • Calibration Error: 0.1%
