Tylox SuperSeal - Pre-Lubricated Gaskets
The unique design of the Tylox SuperSeal gasket is bringing a cost-saving revolution to the field of concrete pipe and manhole gasketing and installation.
Requires no field lubrication. The Tylox SuperSeal gasket has a layer of silicone lubricant installed on the inner surface of the tube, during the manufacturing process; saving you time and money on the job-site.

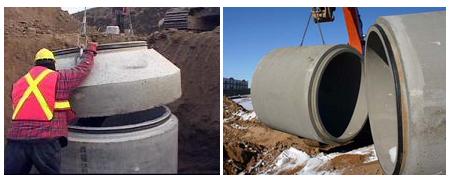

Elimination of unsafe installation practices. Since the Tylox SuperSeal pipe and manhole gasket requires no lubrication, the unsafe practice of standing beneath a suspended riser section, in order to lubricate the bell I.D., is no longer required.
Self-Contained Lubricant. Sealed within the tube, the lubricant is impervious to mud, dirt and debris. If you drop it in the trench, simply wipe the gasket surface clean and you’re ready to install. No special handling is required.

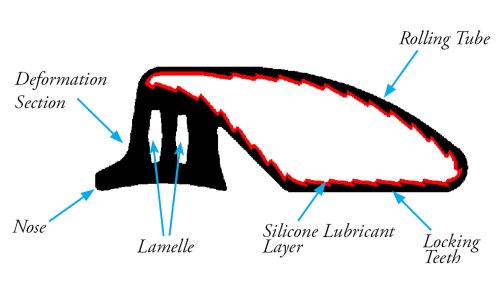

No equalization required. Due to the reduced gasket stretch requirement of the unique lamelle/rolling-tube design, the Tylox SuperSeal gasket requires no equalization after installation. A quick and easy installation means you save even more time and money.
No gasket “roll” or “twist”. Another benefit of the unique lamelle/rolling-tube design is the drastic reduction in insertion forces, virtually eliminating the gasket “roll” and “twist” associated with o-ring and standard profile gaskets.
Self-Centering. The pipe or manhole bell is self-centered on the spigot due to the forces generated as the tube rolls into the annular space during the homing process.
- Saving your money and installation time because of:
- Easy Installation
- No Equalization
- No Lubrication
- Self-Centering
- Suitable for all sizes pipe and manhole
- Standard and Oil-Resistant versions available
