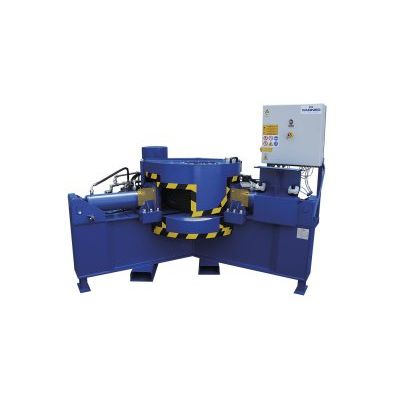

Wagner - Model WRD450 & WRD850 -Tyre Dismantler

• the pressing process is complete in approx. 30 sec (WRD 850) or 60 sec (WRD 450)
• powerful hydraulics
• holds a large amount of oil, preventing from overheating
• solid design tried and tested frequently
• high availability and longevity
• simple maintenance tools and low maintenance

Our model WRD 450 is the low-cost alternative to the WRD 850 which is applicable to smaller quantities of tyres.

However, the WRD 450 has an output of up to 60 tyres per hour.

• Operating mode: The tyre is put onto the machine by actuating the mechanical lever with both hands (for accident prevention) the three hydraulic cylinders are operated.
• The cylinders rise synchronously along exchangeable plastic guide rails and compress the tyre and rim together. The rim is deformed, and the tyre can be removed effortlessly.

WRD850 is used in shift work which requires a high output. This models capacity amounts up to 120 tyres per hour.

This models capacity amounts up to 120 tyres per hour.

• Operating mode: Once the protective shield is opened the tyre is put onto the pressing machine. By actuating the two electronically driven switches (for accident prevention) the three individually-controlled hydraulic cylinders extend synchronously and compress the tyre and rim together.
• After releasing the manual switches the cylinders automatically rise. This process deforms the rim, and the tyre can be removed effortlessly from the rim.
