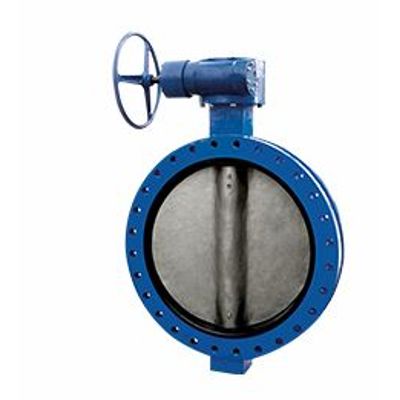

Ekoval - Model EKO1200U -U-Type Butterfly Valve

FromEkoval Valve Company

SHARE

Pressure Ratings: PN10,16,25. Design Standard: BS593. Face to Face Length: DIN3202. Valve Test: EN12266-1. Valve Marking: EN 19. Flange Standard: DIN2501. Product Group: Butterfly Valve. Medium: Water.

Most popular related searches

butterfly valve

position indicator

electric actuator

flow control valve

pneumatic actuator

Design According to EN593 (Comply API 609, MSS SP-67)
Face to Face Length According to DIN3202-BS EN558-1
Flanged Connection According to BS4504 PN10/16 DIN2501 (ANSI B16.1/Class125#)
Hydraulic Pressure Test According to API 598
WRAS Approved Model Suitable for Potable Water
Corrosion Resistant Design
Max Application Temperature +80 °C
Top Flange according to ISO5211-1
Gearbox Operated
Easy to install
Lightweight

Body: GGG40/50 Ductile Iron
Seat: EPDM/NBR/ Optional Teflon
Shaft: Stainless Steel
Bushing: Lubricated Bronze / Teflon
Disc: Ductile Iron as Stantard (All Grades of Stainless Steel Optional)

Inside and Outside 300 Microns Fusion Bounded Powder Epoxy Coated RAL 5005

With Electric Actuator
Electric actuator ready
Pneumatic Actuator
Standard Manual Gearbox with Position indicator
ISO top Flange
Fixed & Telescopic Extension Spindle
With Limit Switches or Position Indicators
