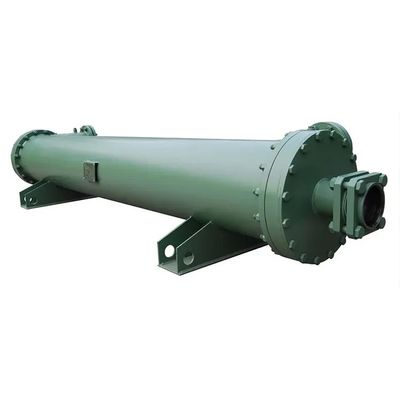

UAR - Dry Evaporator

1. The dry evaporator adopts a high-efficiency heat exchange copper tube.
2. The inside of the dry evaporator shell adopts a continuous spiral baffle and bow baffle. The baffle plate is made of PP plastic.
3. The refrigerant inlet of the shell and tube evaporator tube side is designed with a refrigerant liquid distributor to make the flow of liquid refrigerant entering each heat exchange tube more uniform and high heat exchange efficiency.

1. Simple control and convenient oil return.
2. The use of thickened internally threaded pipes greatly improves the heat transfer coefficient and service life.
3. Continuous spiral baffles are used inside the evaporator shell to make the refrigerant flow in the shell as a spiral plunger, and the heat exchanger is smaller in size and has higher heat exchange efficiency.
4. Suitable for scroll and screw compressors.

The WIELAND software in the refrigeration industry is selected to calculate the heat transfer performance of the heat exchanger, and the heat transfer performance test of the product is carried out on the independent test platform of the Stellar Group. The product strength calculation uses the pressure vessel industry SW6-2011v4.0 software to calculate its strength, and it has passed the inspection of the Guangzhou Municipal Bureau of Quality and Technical Supervision and passed the factory. The company has passed the ISO9001 quality management system certification and obtained the D-level pressure vessel manufacturing license. Our company has an excellent technology research and development team, more than 20 years of technology accumulation has accumulated a wealth of design experience, and maintains the continuous leadership of our products.
