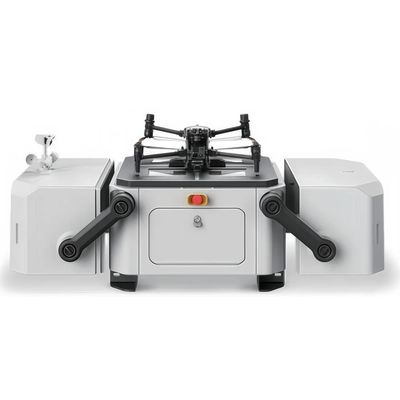

Control Analytical - Model U series -UAV-Borne Laser Methane Leak Detection System
U series UAV-borne Laser Methane Leak Detection System: U10 Ultimate UAV leak inspection system & U20 Lightweight UAV leak inspection system
Most popular related searches
leak detection system
methane leak monitoring
methane detection system
leak detection
laser methane
methane leak
laser methane monitoring
methane detection
inspection system
UAV inspection
The U series integrates advanced ESEGAS laser telemetry, achieving 0.025s response latency with ultra-low static detection thresholds (0.01ppm). This system effectively identifies aerial gas leakage plumes at 100m altitude through differential absorption spectroscopy.
Featuring an ultralight airframe configuration (2.3kg), the platform adheres to regulatory specifications for unmanned aerial systems in low-altitude operations. Operators can conduct atmospheric monitoring missions below 120m without requiring special flight authorization under current UAV flight management protocols.
- The Hi-Automated Leak Detection System offers dual autonomous inspection methodologies: geospatial area scanning and predefined route navigation.
- Operators may either import geospatial KML files to generate GIS-defined flight paths or initiate localized scans through village/station coordinate selection via the interface.
- This advanced solution facilitates multi-channel data exportation, enabling users to retrieve diagnostic reports and event logs through the mobile application while maintaining flight recordings and system metadata on onboard UAV SD cards.
- The platform demonstrates exceptional interoperability, employing secure protocols to stream real-time video feeds and transmit inspection metrics to client-specific enterprise information management systems.
