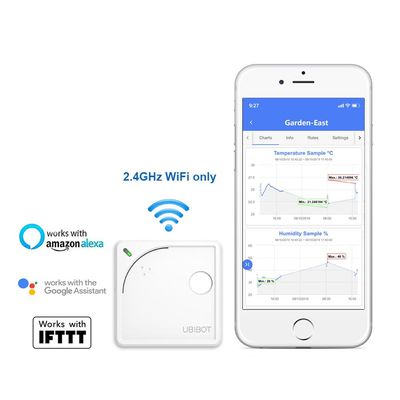

UbiBot - Model WS1 -Cloud-based WiFi temperature, humidity, ambient light data logger and monitoring

SHARE

UbiBot®WS1 is a cloud-based environmental monitoring data logger. It has a compact size and light weight. Its built-in industrial-grade temperature, humidity and ambient light sensors give you accurate sensing of environmental conditions. With WiFi network connection, it automatically synchronizes data to the UbiBot ® IoT Platform, to allow you to monitor the environment in real-time and gives you remote access to your data via UbiBot App or Web console platform on a PC anywhere in the world and receive real-time alerts. WS1 also supports an external probe DS18B20, which can be used in liquids, freezers, fridges, and other harsh environments.

Most popular related searches

temperature probe

ambient light sensor

environmental monitoring data

WiFi temperature and humidity logger

flame resistant

environmental monitoring

environmental data logger

Temperature, humidity and ambient light monitoring
2.4 GHz WiFi network connection, no need of hubs or gateways
Compact size and light weight
Free App & Web Console to access and monitor real-time data remotely, no subscription fee
Unlimited UbiBot cloud storage for historical data; free historical data export
Multiple ways of real-time alerts: App notifications, emails, phone calls, SMS, HTTP
1 x DS18B20 external temperature probe is supported
Easy setup with free UbiBot App or PC tools
300,000 records memory stores all data even if WiFi is temporarily disconnected, to ensure there are no gaps in the data history.
2-way power supply: AA batteries and external power supply
Compliance with CE, EN 12830, FCC, FDA CFR21, IC, RCM, RoHS, TELEC

Note:

UbiBot WS1 is not waterproof. The optimal operational environment is 10% to 90% RH. Long term of exposing to high humid environment over 90% may cause damage to the device.
If used for a freezer/fridge, it’s best to connect a DS18B20 external temperature probe, and put WS1 outside of the freezer/fridge.
WS1 can only work with 2.4GHz WiFi network. 5GHz WiFi is not supported.

UbiBot WS1 supports 1 x DS18B20 external temperature probe.
With a Micro-USB Cable Splitter, WS1 can connect 1 x DS18B20 and external power-supply at the same time.
If used in continuously high humidity over 90%, we suggest to using UbiBot water-resistant case and connect DS18B20 external probes.

Technical specififications
Temperature ：-20℃ to 60℃( -4℉ to 140℉)
Humidity ：10% to 90%, No condensation
Ambient light ：0-83k lux
Accuracy ：temperature ±0.3 ℃, humidity ±3%, ambient light ±2%
Memory ：300,000 sensor records
Network connection
WiFi ：2.4GHz or 2.4/5GHz, channels 1-13 (5GHz WiFi NOT supported)
Physical specififications
Materials ：Flame resistant ABS & PC
Dimensions 65*65*16.5mm
Weight ：31.8g ± 3g
Colour ：white
Ports ：1*Mini USB，1*Micro USB
Power Source ：2 x AA batteries /Micro USB (5V/2A)
External probes
1*DS18B20 temperature probe
List of one single pack
1 x WS1 device; 1 x manual book; 1 x USB cable; 2 x pieces of double side adhesive
tape

Medical fields
Pharmaceutical
Labs
Hospital
Cleanroom
Server room
Automation building
HVAC
Agricultural fields - greenhouse; hydroponics; indoor farming; vertical farming
