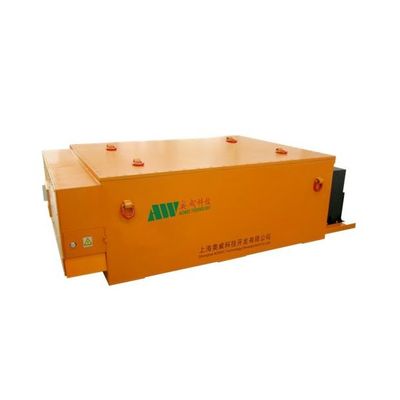

Aowei - Model S585V73-K7 -UC System for Electric Locomotive
Customized system solution according to customer requirements, typical systems are S585V55-K7 and S585V73-K7. It designed with multiple protection case and filled with nitrogen, safe and reliable. It can be applied to tunnel locomotive, mining locomotive, port truck, heavy duty traction vehicle and other high power and high energy applications.
Most popular related searches
temperature monitoring
electric locomotive
mining truck
leak monitoring
tunnelling
automatic temperature monitoring
automatic monitoring
air monitoring
- Customized system solution according to customer requirements, typical systems are S585V55-K7 and S585V73-K7
- Working temperature window: -25~55 ?
- Designed with multiple protection case filled with nitrogen,
- Applications:Tunnel locomotive,Mining locomotive,Port truck
- Characteristics:Designed with multiple protection case filled with nitrogen, safe and reliable
- Tunnel locomotive
- Mining locomotive
- Port truck
- Heavy duty traction vehicle
- Other high power and high energy applications
- Part Number: S585V73-K7
- Nominal Capacitance(F): 2200
- Operating Voltage Window(V): 420~590
- Surge Voltage(V): 600
- Stored Energy(kWh): 60
- Standard Charge Current(A): 760
- Standard Discharge Current(A): ≤760
- Maximum Charge/Discharge Current(<20s)(A): 1500
- Time for Charging(min): 26
- Operating Temperature(oC): -25~+55
- Storage Temperature(oC): -30~+65
- Protection Level: IP67
- Electric Property: Overvoltage, overcurrent, overheat, overload, short circuit, DC leakage protection, etc
- Capacitor Management System: Automatic balance, voltage monitor, temperature monitor, DC leakage monitor, etc
- Cooling Mode: Air cooling
- Communication Interface: CAN
- Size(mm): 2440×1425×850
- Weight(kg): 3000
