Infinite RFID Technology Co., Limited

InfiniteUHF RFID Antennas

SHARE

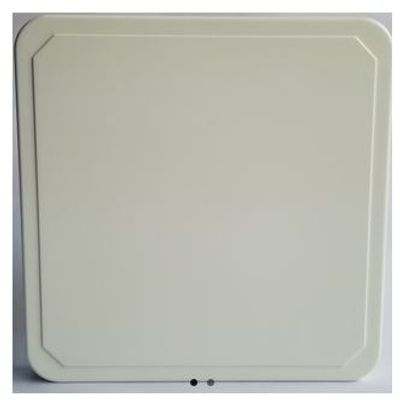

IRN900 RFID antenna features extremely low voltage standing waves (VSWR) and axial ratios. With these low ratios, the user will be able to maximize the performance of the panel antenna and improve efficiencies in the system. With an IP rating of 67, the heavy-duty radome antenna enclosure is perfect mounting directly to the walls of industrial environments such as warehouses, terminals, distribution centers, and more.

Most popular related searches
  • 9dbi High gain

  • IP67

  • Long reading distance

  • 860-960mhz

  • N-50KFD (Type N Female)

  • Linear/Circular Polarization

  • 9dbi High gain

  • IP67

  • Long reading distance

  • 860-960mhz

  • N-50KFD (Type N Female)

  • Linear/Circular Polarization

  • Product Name 9dbi UHF RFID RHCP Antenna
  • Material Engineering Plastic ASA,Aluminums
  • Color Ivory-white
  • Frequency Range 860-868mhz or 902-920mhz
  •  Maximum VSWR 1.3:1
  • Polarization Circular Polarization
  • Input Impedance 50ohm
  • Antenna Connection N-50KFD (Type N Female)
  • Relative humidity 5%~95%
  • Enclosure Rating IP67
  • Working temperature  -40℃~+ 85℃
  • Storage Temperature -40℃~+ 85℃
