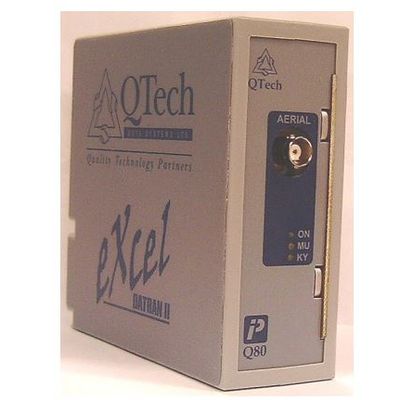

QTech DATRAN - Model Q80 -UHF Telemetry Radio Module
The Q80 – Telemetry Radio Module is a complete telemetry radio transceiver designed to complement the QTech range of RTU modules. The Q80 – Telemetry Radio Module includes a state of the art Maxon 5 Watt, multi-band, synthesized transceiver together with associated RTU radio interface and power supply in a single module.
Most popular related searches
The module is compact and housed inside a standard DATRAN II housing, simplifying the installation while improving its overall appearance.
The Q80 is available in three frequency bands covering VHF and UHF.
- Internal Casing - Cast Alloy providing excellent RF Shielding
- Channel Spacing - 12.5kHz or 25kHz Programmable Per Channel
- Frequency Source - Precision internal Synthesiser
- Frequency Bands - U1 UHF 400-430MHz U2 UHF 450-470MHz
- Aerial Connection - BNC, 50W Unbalanced
- Power Output - Programmable between 0.5 to 5 watts, in 8 steps per channel
- Remote on/off - Power on/off can be controlled from the DATRAN II eXcel RTU
- Power Supply - 12V DC (7.5 to 16V Acceptable)
- Current Consumption - Stand-by 80mA, Transmit 1.2A @5W RF power, Receive 100mA
- Data Interface - Standard 6-Pin DIN DATRAN Comms Connector
- Weight 440g
