ULC - Model PRX250 -Live Gas Main Camera Inspection System
The PRX250 Live High Pressure Gas Main Camera Inspection System is the most comprehensive, innovative live gas main camera system to provide gas networks with the highest quality, most cost effective and reliable pipeline inspection possible. The use of our PRX250 system is proven to provide significant cost savings, improved safety, increased efficiency and higher customer satisfaction.
- Diameter Range: 4″-12″ / 101-315mm
- Materials: Cast Iron, Steel & Plastic
- Max Pressure: 60psi / 4bar
- Min Drilling: 1.5″ NPT or 1.75″ Drilling
- Camera Type: Wide Angle, Fixed
- Tether Length: 300′ / 92m
Water Infiltration
The waterproof PRX250 system’s camera head makes it ideal for locating water blockages and investigating the source of water infiltration.
Locate Features
Gas utilities use the PRX250 system to identify and locate features in the main such as joints, drip pots, valves and more.
Find Undocumented Connections
Identify undocumented service taps, stub service taps, crosses and tees and utilize data collected from the PRX250 system to know your mains.
Internal Valve Inspection
Perform visual assessment of valves to determine position, orientation and type while ensuring debris is not blocking the path of the valve.
Verify Plastic Pipework
Visually inspect plastic pipe fusions and plastic coupling installations by looking for gaps and dripping plastic or assessing the rollback.
Verify Plastic Tee Installations
The PRX250 system can be used to verify proper installation of tees to ensure the cutter has fully protruded into the main.
Pre-Insertion Inspection
The PRX250 system can be used to visually inspect and locate protruding services and misaligned joints that may block the insertion process.
Gas Leak Investigation
Customers use the PRX250 system’s camera to aid in leak detection by looking for visual evidence such as cracks, leak paths or corrosion.
Self Deploying Centering System: The PRX250 system has built-in centering springs to provide a broad, centered view of the entire circumference of the pipeline. This centered view is a critical component of a high quality inspection as cameras that sit at the bottom of the pipeline are unable to see tap holes and features at the top of the gas main. With the centered, well-lit and crisp view of the gas main, the PRX250 system can also locate gas leaks by visually identifying cracks in the pipe wall, corrosion, graphitization, and features notorious for leaks such as taps, joints and couplings.
Motorized Cable Feeder: The power drive motorized cable feeder included with the PRX250 system provides the camera operator with a smooth, distraction-free inspection of gas mains. Inspection can be performed with greater accuracy and more efficiency, allowing more inspection work to be accomplished in less time.
Because the camera operator has push button control over the forward and backward motions of the camera, as well as the speed, there is no need for utility personnel to enter the excavation pit during the inspection process and the camera operator is able to focus on the inspection instead of pushing the camera.

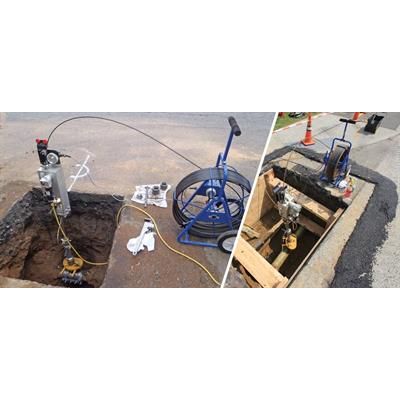

No-Blow/Gas Free Launch Into Live Gas Mains: The PRX250 camera system is extremely versatile and can be adapted to a wide range of fitting and valve combinations for vertical or angular entry into pressurized cast iron, steel and plastic mains ranging from 2″ to 12″ diameters and operating up to 60psi (4bar).
15-inch Daylight Readable Display: The PRX250 control box has a large, daylight visable display, video recorder and keyboard in addition to system controls for power, LED adjustment and motor speed. Packed in a rugged case, the PRX250 Control Box can easily withstand typical field conditions.
PRX250K: Keyhole Camera Launch: To help reduce the cost of excavation and street restoration for visual assessment of live gas mains, ULC Robotics developed a launch tube that can be operated through an 18” diameter keyhole. This launch tube was initially designed for use with the ALH System Four Keyhole System, but it can be adapted to other drilling and tapping systems that work through low-cost keyholes.
