Uliksensor - Model OWS-MW-SCx -Multi-Parameter Optical Water Quality Sensor

SHARE

WQS-M-SCx sensors can measure turbidity, chromaticity, COD, and TOC at the same time.

Most popular related searches

multiparameter water quality sensor

water quality sensor

multiparameter water quality

turbidity monitoring

TOC measurement

spectroscopy monitoring

absorption spectroscopy

chlorine sensor

The turbidity measurement is based on the 90°scattered light principle, and the COD and TOC measurements are based on the ultraviolet spectrum absorption principle.
It adopts high parallelism and has an automatic light intensity correction laser light source and high sensitivity detector. The sensor is equipped with an automatic optical window cleaning function, long-term maintenance-free, and suitable for tap water application scenarios.
In addition, with the DL-W-S/DL-BW-B series data transmitter and Ulik-Server Cloud Service, users can realize on-site and remote data viewing.

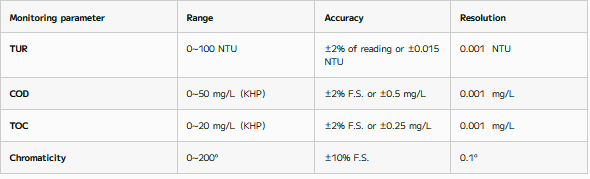

Monitoring Parameter CODcr, CODmn, TOC, TUR, Chromaticity
Principle: TUR: Nephelometry with scattered light at a 90-degree angle to the incident light. COD/TOC: Ultraviolet absorption spectroscopy.
Measurement Interval: Minimum 10 s
Interface: RS485
Protocol: Modbus RTU
IP Rating: IP68
Mounting: Indoor on a wall
Weight: 1.6 kg
Dimension: 150×82×175 mm(5.9×3.2×6.9 in)
Material: AISI 316L
Cleaning Methed Automatic optical window cleaning function
Working Voltage DC 12~24 V
Power:
Working Temp: 2 ?~50 ?
Pressure: ≤1 MPa
Humidity: 5% to 95% relative humidity, non-condensing
Cable Length: Custom
Certification: CE/RoHS
Warranty: One year
