Gasera - Model ONE -Ultimate Performance Multi Gas Analyzer
GASERA ONE is a photoacoustic multi-gas analyzer platform that can be configured to a wide variety of research and industrial applications. It combines the best of both worlds in the detector and the light source sides. The unmatched performance of GASERA ONE is based on a photoacoustic infrared spectroscopy engine with a patented ultra-sensitive cantilever pressure sensor.
The Ultimate Performance Gas Analyzer
- Easy to use
- Remote control via Gasera Cloud
- Below ppb sensitivity with 5 orders of linear dynamic range
UNMATCHED PERFORMANCE

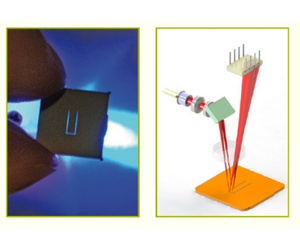

Photoacoustic infrared spectroscopy engine with a patented ultra-sensitive cantilever sensor enables sub-ppb detection limits.
TAILORED FOR MANY APPLICATIONS

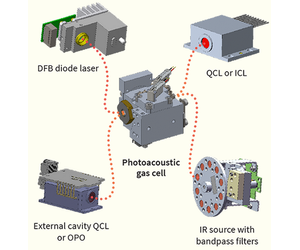

Possibility to select the optimal laser and/or light source combination.
EVEN THE MOST COMPLEX APPLICATIONS

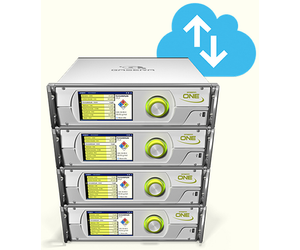

Stack and synchronise devices to provide the ultimate solution.
- PLATFORM TO SUPPORT WIDE VARIETY OF APPLICATIONS
- Easy-to-use controls
- Remote control via Gasera Cloud
GASERA ONE can be tailored to suit multiple applications by selecting optimal lasers and/or light sources. For even more complex measurement scenarios, several GASERA ONEs can be stacked and synchronized to provide an ultimate solution for your application.
GASERA ONE provides the user with a simple and intuitive interface with high resolution display and a single rotating knob. In addition, the user can control the GASERA ONE wirelessly with smartphone, tablet or other devices.
- Anesthetics: desflurane, enflurane, isoflurane, sevoflurane etc.
- CFCs and PFCs: CF4, C2F6, R13 , R-134a etc.
- Corrosives (at low levels): HCl, HCN, HF
- Hydrocarbons: CH4, C2H2, C2H4, C2H6 etc.
- Inorganics: CO, CO2, H2O, H2S, NO, NO2, N2O, NF3, NH3, SF6, SO2
- VOCs: acetone, benzene, ethanol, formaldehyde, methanol, toluene, xylenes etc.
- Based on patented photoacoustic spectroscopy with cantilever enhanced optical microphone
- Configurable to several applications by selecting relevant combination of light sources
- Response time user configurable from few seconds to several minutes
- Simultaneous analysis of up to 50 gases depending on configuration
- Typically Low or sub-ppb detection limits
- High selectivity
- Low sample volume and wide dynamic range
- Long re-calibration period
- Built in 2-point sampling
- User friendly calibration
- Automatic compensation for temperature and pressure fluctuations
- Versatile programming of analysis tasks
- Built in high resolution graphical display with user friendly menus, no external computer required
- Numerical and graphical presentation of the measurement results
- Remote control via Gasera Cloud
- Animal husbandry
- Border security
- Cargo container safety
- Fenceline monitoring
- Indoor air quality and occupational safety
- Ship emissions monitoring
- Soil analysis
- Waste anesthetic gases
- Photocatalysis research
- Clean room monitoring
