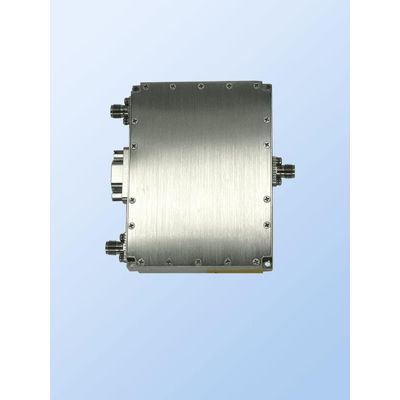

Corech - Ultra-Agile Frequency Synthesizer
Corech Microwave’s Ultra-Agile Frequency Synthesizer operates from 2GHz to 40GHz, featured with fast setting time of less than 2μs, ultra low noise, spurious and low cost. They are very rugged and compact to be integrated in various systems.
Corech’s Ultra-Agile Frequency Synthesizer packs impressive low phase noise of -100dBc/Hz@10kHz@20GHz, low spurious of -65dBc, high temperature and corrosion resistance, long operating life, temperature uniformity, and good thermal conductivity. These outstanding performance make it suitable for high-reliability and environmentally stressful applications including communication systems, test and measurement equipment, radar systems etc.
We are capable to custom Output Frequency, Output Power and Frequency Step according to customers’ requirements.
