Ultra - Compact 3 Way Screener

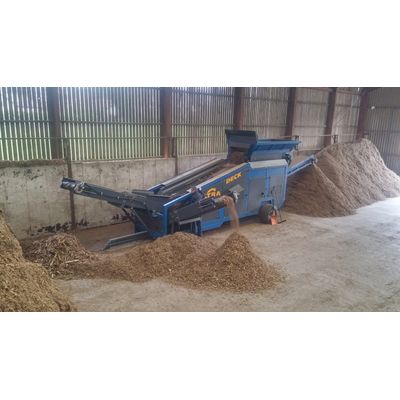

The Ultra 3WAY is a compact three product screener, that can be fully operated from one side, giving a 180 degree operating footprint. The unit features the 10ft x 4ft double deck that is used on the Ultra Deck, and can process material at rates of up to 80 - 100 TPH. The 3WAY is suited to screening a wide range of products, mainly soils and aggregates, biomass wood chip, compost, glass and waste.
The Ultra ‘3Way’ has been designed to offer recyclers and materials management companies a compact three grade screen that can be loaded and operated from one side, a first in a screen of this class.
The unit features a variable speed feed hopper and a 10ft x 4ft double vibrating deck, allowing for high screening rates and handling of a full range of materials, including waste, soils, glass/metals and wood chips.
- Variable speed feed hopper
- High capacity 10ft x 4ft vibrating Screen Deck, suited to soils, aggregate and wood
- Fines, mid and oversize stockpile conveyors
- Self contained mobile chassis
- Deutz Diesel powered engine (other options available)
- 6.5 tonne Overall weight
- Road lights
- Tracks
- hopper extensions
- 3m3 Feed hopper (Variable speed)
- 10f x 4ft double deck screen
- 1200mm wide fines stockpile belt, 2.5m high
- 700mm wide chevron mid product belt, 1.8m high
- 900mm wide chevron overs belt, 2m high
- Self contained chassis
- Single side operation, can be set up along a wall for compact operation
- Deutz 45hp Diesel engine
- Axle or tracked chassis
- Quick mesh change design
